Advantages and Disadvantages of Investment Casting in Marine Applications

Investment casting, also called precision casting, is a manufacturing process that creates detailed and accurate components. It’s especially useful for marine applications, where durability and precision are critical. From crafting corrosion-resistant propellers to thin wall investment casting for lightweight parts, this method ensures high performance in harsh saltwater environments.

Understanding when to use investment casting in marine industry projects helps balance cost and efficiency. For example, soluble wax investment casting allows for intricate designs, making it ideal for casting metal parts like valves or fittings. This knowledge ensures better decision-making for marine engineers.

Key Takeaways

• Investment casting is very accurate and creates complex shapes. This makes it great for marine parts like propellers and valves.
• Using materials that resist rust makes parts last longer. These parts can handle tough saltwater conditions.
• Investment casting costs more at first but wastes less material. It also needs less extra work, saving money over time.

What Is Investment Casting?

Overview of the Process

Investment casting, often called precision casting, is a manufacturing technique used to create detailed and accurate metal components. The process begins with designing a pattern die, which shapes the wax patterns. These wax patterns are then coated with a ceramic material to form a shell mold. Once the ceramic shell hardens, the wax is melted and removed, leaving a hollow mold. Finally, molten metal is poured into the mold to create the desired component.

Here’s a quick look at the key steps involved:

Process Step	Description
Pattern Die Design	Shapes the wax patterns and determines the final casting dimensions.
Creation of Wax Patterns	Wax is injected into dies to form patterns for casting.
Ceramic Shell Formation	Wax patterns are coated with ceramic to create a durable shell mold.
Dewaxing	Wax is removed from the shell mold before casting the metal.
Casting	Molten metal is poured into the mold to form the final component.
Tooling Dimension Prediction	Ensures the casting meets precise tolerances during the first run.

This process is highly versatile and can produce components with intricate geometries. Ningbo Pingheng Machinery Co., Ltd. specializes in this method, using materials like stainless steel 304 and 316, as well as copper alloys, to meet diverse industry standards.

Relevance to Marine Applications

Investment casting plays a vital role in the marine industry. It enables the production of high-quality components that withstand harsh maritime conditions. For example, this method is essential for creating corrosion-resistant parts like propellers and valves. The ability to cast complex shapes with tight tolerances makes it ideal for marine gas turbines and offshore platform components.

• The Sodium Silicate Process, a popular investment casting method, holds a 73% market share in 2024. It’s widely used for mass production in the offshore industry.
• Investment casting supports the development of gas turbine engines, which are critical for marine propulsion systems.

By leveraging this process, manufacturers like Ningbo Pingheng Machinery Co., Ltd. deliver durable and precise components tailored to the unique demands of marine environments.

The Investment Casting Process for Marine Components

Step-by-Step Process

Investment casting involves several precise steps to create high-quality marine components. Each stage ensures the final product meets the demanding requirements of marine environments. Here's a breakdown of the process:

Step	Description
1	Create a wax pattern, often using 3D printing for enhanced precision.
2	Assemble wax patterns into a tree structure for casting multiple parts.
3	Dip the wax tree in ceramic slurry and coat it with fine sand for strength.
4	Heat the mold to remove the wax and solidify the ceramic shell.
5	Pour molten metal into the mold, capturing every intricate detail.
6	Break the ceramic shell to reveal the cast parts, followed by finishing.

This process allows manufacturers to produce components with complex shapes and tight tolerances, making it ideal for marine applications.

Common Materials Used in Marine Investment Casting

Marine components face harsh conditions, so material selection is critical. Here’s a look at some commonly used materials and their advantages:

Material Type	Properties and Advantages
Stainless steel	Superior corrosion resistance, perfect for saltwater environments.
Aluminum alloys	Lightweight and corrosion-resistant, ideal for reducing ship weight.
Titanium alloys	Exceptional strength-to-weight ratio, highly resistant to marine corrosion.
High chromium steel	Excellent durability and corrosion resistance in harsh conditions.

These materials ensure durability and performance, even in the toughest marine settings.

Real-Life Example: Propellers and Corrosion-Resistant Components

Propellers are a prime example of investment casting in action. Mercury Marine, a leader in propeller manufacturing, has developed over 100 unique designs since the 1970s. Their stainless steel propellers offer superior strength and corrosion resistance, essential for modern outboard engines. By combining investment casting with advanced technologies like CNC machining, they’ve improved fuel efficiency and ride quality, setting a high standard for marine performance.

Advantages of Investment Casting in Marine Applications

High Precision and Complex Shapes

Investment casting excels at creating components with intricate designs and tight tolerances. This precision allows manufacturers to produce parts that fit perfectly into marine systems, reducing the need for additional machining. For example, propellers with complex blade geometries can be cast to exact specifications, ensuring optimal performance in water. The ability to replicate fine details makes this process ideal for marine components like turbine blades and valve bodies.

Material Versatility for Marine Environments

Marine environments demand materials that can withstand corrosion, pressure, and temperature fluctuations. Investment casting supports a wide range of materials, offering flexibility for various applications. Here’s a quick look at some materials commonly used in marine casting:

Material	Corrosion Resistance	Applications
Monel 400	Excellent in seawater	Propeller shafts, valve bodies
Hastelloy C-276	Exceptional in aggressive environments	Pumps, heat exchangers

This versatility ensures that manufacturers can select the best material for each specific marine application, enhancing durability and performance.

Corrosion Resistance in Saltwater Conditions

Saltwater is highly corrosive, making corrosion resistance a top priority for marine components. Investment casting allows the use of alloys with high Pitting Resistance Equivalent Numbers (PREN). Alloys with a PREN of 40 or higher are particularly effective in resisting pitting corrosion in seawater. This metric considers the alloy’s composition, including elements like chromium and molybdenum, ensuring the material can endure harsh marine conditions.

Reduced Waste and Efficient Material Use

Investment casting minimizes material waste by producing components with near-net shapes. This precision reduces the need for secondary machining, saving both time and resources. Foundries that adopt this process benefit from lower material consumption, aligning with sustainability goals while cutting costs. The efficiency of investment casting makes it an environmentally friendly choice for marine manufacturers.

Real-Life Example: Offshore Platform Components

Offshore platforms require components that can endure extreme conditions, including high pressure and corrosive seawater. Investment casting has been instrumental in producing parts like pump housings and valve bodies for these platforms. These components, crafted with corrosion-resistant alloys, ensure long-term reliability and safety in offshore operations. By using investment casting, manufacturers meet the rigorous demands of the marine industry while maintaining cost efficiency.

Disadvantages of Investment Casting in Marine Applications

Higher Initial Costs

Investment casting often comes with higher upfront costs, especially in marine applications. This is mainly due to the tooling expenses required for creating molds and patterns. Complex geometries and the need for high precision in marine components further increase these costs.

• Tooling costs can vary depending on the complexity of the part.
• Creating wax pattern molds is particularly expensive.
• While the initial investment is high, it can be offset by producing multiple parts from the same mold.

For marine projects, these initial costs may seem daunting. However, the long-term benefits, such as reduced waste and material efficiency, often justify the expense.

Size Limitations for Large Components

Investment casting has size constraints that can limit its use for large marine components. The process typically supports maximum dimensions of 1000×300×300 mm, with a minimum wall thickness of 1.0 mm.

Specification	Measurement
Maximum Dimensions	1000×300×300 mm
Minimum Wall Thickness	1.0 mm
Minimum Weight	0.015 kg

Producing larger parts requires specialized equipment and facilities, which can complicate the process. Designers must carefully consider these limitations when planning marine projects.

Complexity and Longer Lead Times

The intricate nature of investment casting can lead to longer production times. Each step, from creating wax patterns to finishing the final product, requires precision and care. For marine applications, where components often have complex designs, this can extend lead times significantly. Manufacturers must balance the need for precision with project deadlines, which can be challenging in time-sensitive marine operations.

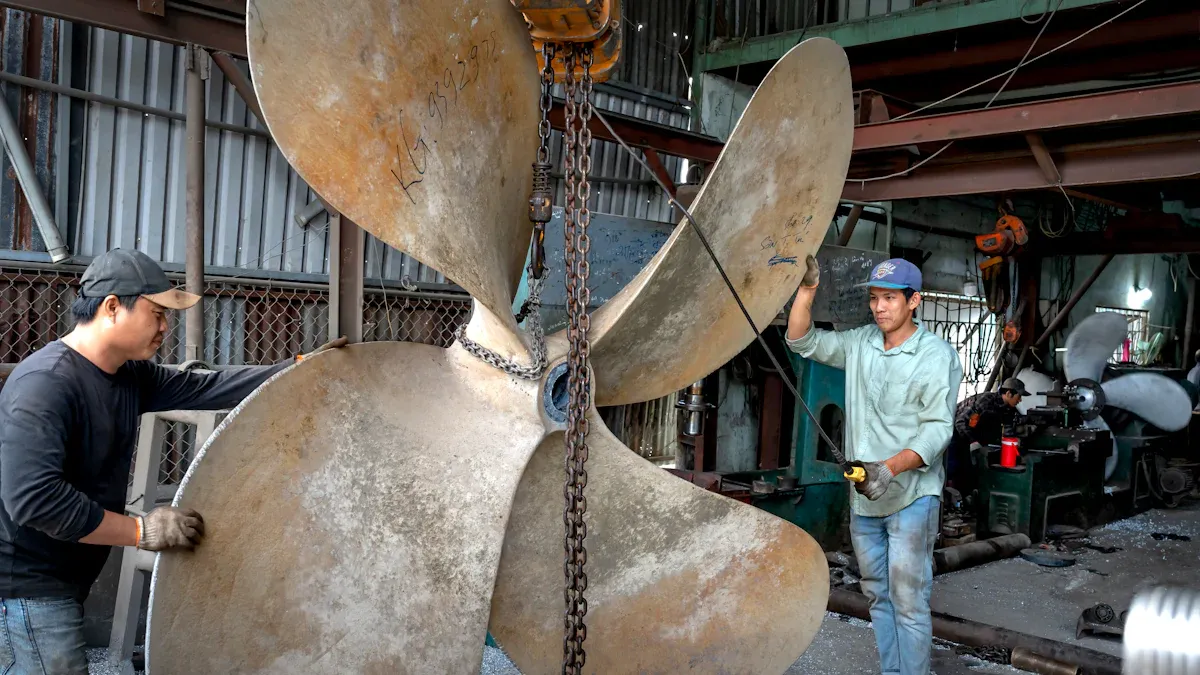

Real-Life Example: Challenges in Casting Large Ship Parts

Casting large ship components, such as hull sections or oversized propellers, highlights the limitations of investment casting. These parts often exceed the size and weight constraints of the process. Additionally, the complexity of creating molds for such large components increases production time and costs. For these reasons, alternative manufacturing methods, like sand casting or fabrication, are often preferred for large-scale marine parts.

When to Use Investment Casting in Marine Industry

Factors to Consider for Marine Projects

Investment casting offers many benefits, but it’s not always the best choice for every marine project. Engineers need to evaluate several factors before deciding. First, the complexity of the component plays a big role. If the design requires intricate details or tight tolerances, investment casting is often the go-to method. Second, the material requirements matter. Marine environments demand corrosion-resistant alloys, and investment casting supports a wide range of these materials. Lastly, project timelines and budgets should be considered. While the process ensures high-quality results, it may take longer and cost more upfront compared to other methods.

Cost-Benefit Analysis

When deciding whether to use investment casting in marine industry projects, a cost-benefit analysis can help. The initial costs might seem high due to tooling and mold creation. However, the long-term savings often outweigh these expenses. Investment casting reduces material waste and minimizes the need for secondary machining. This efficiency makes it a cost-effective option for producing high-performance marine components. Additionally, the durability of cast parts means fewer replacements, saving money over time. For projects where precision and reliability are critical, the benefits usually justify the investment.

Real-Life Example: Balancing Cost and Performance in Marine Design

Marine designers often face tough decisions when balancing cost and performance. A structured approach helps streamline this process. First, analysts present all available options and their outcomes. Strategies that fail to meet minimum sustainability criteria are eliminated. Next, options that perform poorly across all metrics are removed. Finally, decision-makers use a trade-off approach to select the best solution. This method ensures that investment casting is chosen only when it aligns with both budget and performance goals, making it a smart choice for many marine applications.

---

Investment casting offers precision, material versatility, and corrosion resistance, making it a strong choice for marine applications. However, higher costs and size limitations can pose challenges.

Always evaluate your project’s specific needs before deciding. Consulting experts ensures the best results, balancing performance and cost for marine environments.

FAQ

What makes investment casting ideal for marine environments?

Investment casting creates precise, corrosion-resistant components. It supports materials like stainless steel and titanium, which perform well in harsh saltwater conditions.

Can investment casting handle large marine components?

Not always. Investment casting works best for smaller, intricate parts. For oversized components, other methods like sand casting might be more suitable.

Is investment casting cost-effective for marine projects?

Yes, for high-precision parts. While initial costs are higher, reduced waste and long-lasting components often make it a smart investment over time.
