How 17-4 PH Stainless Steel Casting Supports Critical Aerospace Structures
The application of 17-4 PH stainless steel casting in the aerospace field delivers unmatched strength and resistance to corrosion. Engineers trust this material for landing gear, turbine blades, and mounting brackets. 17-4 PH stainless steel precision casting handles high temperatures and demanding loads, supporting critical parts like valve mounts, engine rings, and manifolds.
Key Point: Stainless Steel Casting in the aerospace field boosts safety and reliability for essential aircraft systems.
Key Takeaways
- 17-4 PH stainless steel casting offers high strength, good corrosion resistance, and adjustable properties through heat treatment, making it ideal for critical aerospace parts.
- Precision investment casting allows the creation of complex aerospace components with tight tolerances and excellent surface finishes, saving time and reducing waste.
- Strict quality certifications and advanced testing ensure 17-4 PH stainless steel castings meet the safety and reliability standards needed for aerospace applications.
The Application of 17-4 PH Stainless Steel Casting in the Aerospace Field: Properties and Process
High Strength, Corrosion Resistance, and Heat Treatability

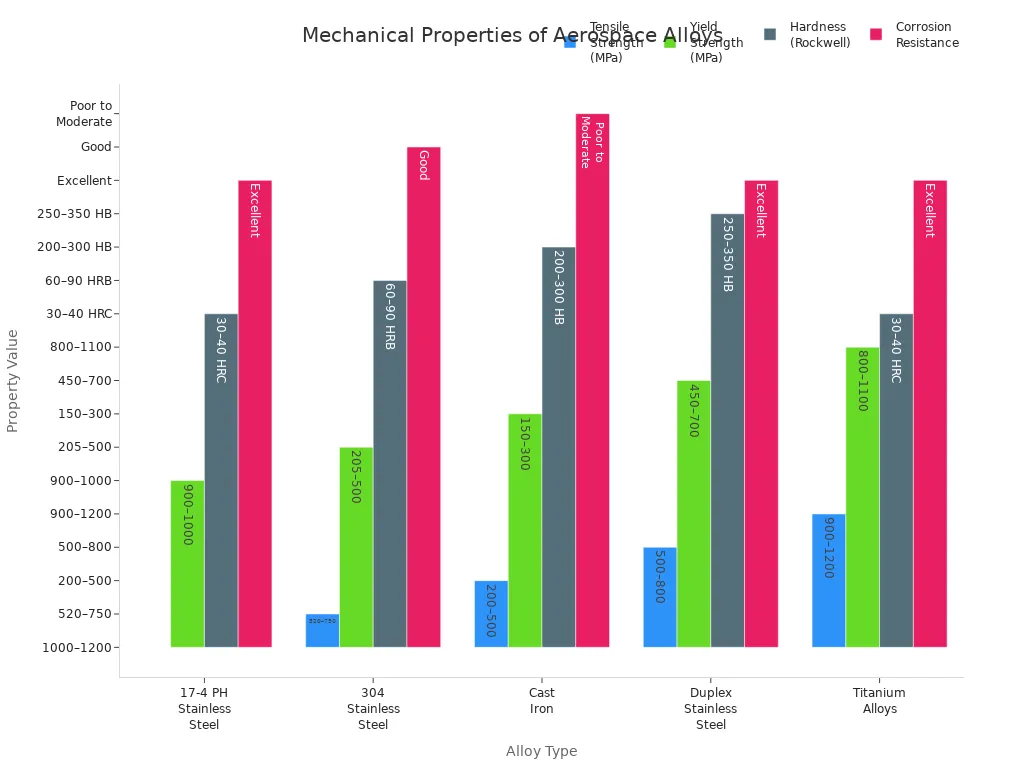

The application of 17-4 PH stainless steel casting in the aerospace field stands out because of its impressive mechanical properties. After heat treatment, this alloy reaches yield strengths between 1100 and 1300 MPa (160 to 190 ksi), making it one of the strongest stainless steels available for aerospace use. In the H900 condition, it can achieve ultimate tensile strengths up to 200 ksi (1379 MPa) and hardness levels as high as Rockwell C47. These values mean that engineers can rely on 17-4 PH for parts that must handle heavy loads and resist wear.
Corrosion resistance is another reason why the application of 17-4 PH stainless steel casting in the aerospace field is so common. This alloy performs well in marine and aerospace environments, even though its corrosion resistance drops slightly in the H900 condition. While it does not match the corrosion resistance of 316 stainless steel, it still protects critical components from rust and pitting in most aerospace settings.
Heat treatability gives manufacturers flexibility. By choosing different heat treatment conditions like H900 or H1150, they can balance strength, toughness, and corrosion resistance to fit the needs of each part. For example, higher aging temperatures improve toughness and corrosion resistance, while lower temperatures maximize strength and hardness.
Key Point: The application of 17-4 PH stainless steel casting in the aerospace field delivers a unique mix of high strength, good corrosion resistance, and adjustable properties through heat treatment.
Precision Casting for Complex Aerospace Components
Aerospace parts often have complex shapes and tight tolerances. Investment casting, also called the lost-wax process, is the preferred method for making these parts from 17-4 PH stainless steel. This process creates intricate components with minimal machining, saving time and reducing waste. It also allows for thin walls and detailed features that other casting methods cannot achieve.
The application of 17-4 PH stainless steel casting in the aerospace field benefits from Investment Casting’s precision. Manufacturers can achieve dimensional tolerances as tight as ±0.005 inches (±0.127 mm) for the first inch and ±0.002 inches (±0.0508 mm) for each additional inch. Surface finishes can reach 63-250 microinches Ra, and wall thicknesses can be as thin as 0.040 inches (1.02 mm). These capabilities are essential for parts like actuator housings, brackets, and engine components.
| Aspect | Detail |
|---|---|
| Dimensional Tolerances | ±0.005 in (first inch), ±0.002 in (add'l inch) |
| Surface Finish | 63-250 microinches Ra |
| Wall Thickness | As thin as 0.040 in (1.02 mm) |
| Process | Investment casting |
| Quality Standards | ISO 9001:2015, ASTM, DIN |
Key Point:Precision Casting methods like investment casting help the aerospace industry create complex, high-performance parts from 17-4 PH stainless steel with tight tolerances and excellent surface finishes.
Case Example: Jet Engine Mounts and Turbine Blades
Jet engine mounts and turbine blades face some of the harshest conditions in aerospace. They must handle high temperatures, constant vibration, and repeated stress. The application of 17-4 PH stainless steel casting in the aerospace field has led to major improvements in these components.
- Jet engine mounts made from 17-4 PH offer a high strength-to-weight ratio, which is crucial for keeping aircraft light and efficient.
- Turbine blades benefit from the alloy’s excellent fatigue resistance, allowing them to withstand thousands of cycles without cracking.
- Both components gain from the material’s good corrosion resistance, which helps them last longer in harsh environments.
- The alloy’s performance at elevated temperatures ensures reliability, even when engines run hot.
- Maintenance needs drop because 17-4 PH parts resist wear and failure better than many alternatives.
Aerospace companies often choose 17-4 PH for these parts, even though the initial cost is higher. Over time, the durability and reduced risk of failure make it a cost-effective choice.
Key Point: Jet engine mounts and turbine blades made from 17-4 PH stainless steel casting deliver strength, durability, and reliability, supporting safer and more efficient flight.
The Application of 17-4 PH Stainless Steel Casting in the Aerospace Field: Critical Components and Quality Assurance
Landing Gear Components and Aircraft Structural Brackets
Landing gear takes on some of the heaviest loads in any aircraft. Engineers choose 17-4 PH stainless steel casting for these parts because it delivers the strength and toughness needed for safe landings and takeoffs. After heat treatment, this alloy reaches impressive mechanical properties. Take a look at the table below to see why it stands out:
| Property | Value / Description |
|---|---|
| Tensile Strength | Up to 1300 MPa (190 ksi) after aging |
| Hardness | Approximately 44 HRC |
| Applications | Aerospace landing gear components, structural parts |
Different heat treatments, like H900 and H1025, allow engineers to fine-tune the balance between strength and hardness:
| Heat Treatment | Tensile Strength (MPa) | Yield Strength (MPa) | Hardness (HRC) |
|---|---|---|---|
| H900 | 1310 | 1170 | 40-47 |
| H1025 | 1070 | 965 | 35-45 |
Aircraft structural brackets also benefit from these properties. While Custom 465 stainless steel can offer even higher fatigue resistance, 17-4 PH remains a reliable choice for many brackets. Surface treatments like Low Plasticity Burnishing (LPB®) can boost fatigue life, helping brackets last through thousands of flight cycles—even when exposed to surface damage or corrosion.
Key Point: 17-4 PH stainless steel casting gives landing gear and structural brackets the strength, hardness, and durability needed for safe, long-lasting performance in the aerospace field.
Actuator Housings, Control System Parts, and Satellite Supports
Aerospace systems rely on precise movement and control. Actuator housings and control system parts made from 17-4 PH stainless steel casting keep these systems running smoothly. Why do engineers pick this alloy for such critical roles? Here are the main reasons:
- High strength and hardness after heat treatment—tensile strengths can exceed 1100 MPa, and hardness can reach up to 44 HRC.
- Good corrosion resistance in typical aerospace environments.
- Stable mechanical properties at temperatures up to about 600°F (316°C).
- Heat treatability allows for custom strength and toughness, matching each part’s needs.
- Excellent for precision CNC machining, which is important for complex actuator housings and control parts.
- Maintains dimensional stability, even under stress and heat.
Satellite supports also use 17-4 PH stainless steel casting because it resists wear and keeps its shape in the harsh conditions of space. Even though machining and post-weld heat treatment require care, the benefits far outweigh the challenges.
Key Point: The application of 17-4 PH stainless steel casting in the aerospace field ensures actuator housings, control system parts, and satellite supports deliver reliable, high-performance operation under demanding conditions.
Quality Assurance and Aerospace Certifications
Quality matters in aerospace. Every part must meet strict standards before it ever flies. Suppliers of 17-4 PH stainless steel castings need to follow recognized certifications to prove their quality and reliability. Here’s a quick look at the most important certifications:
| Certification | Description | Relevance to 17-4 PH Stainless Steel Casting Suppliers |
|---|---|---|
| ISO 9001:2015 | International quality management system standard | Ensures consistent quality management for aerospace casting suppliers |
| AS9100D | Aerospace-specific quality management standard | Ensures compliance with aerospace industry requirements for castings |
| NADCAP | Special process accreditation for aerospace manufacturing | Relevant for process control in casting, heat treatment, and testing |
| ITAR | International Traffic in Arms Regulations registration | Ensures compliance with export control and security for defense work |
Suppliers with these certifications show they can trace every part, control their processes in real time, and meet the highest industry standards. Non-destructive testing (NDT) also plays a big role. NADCAP-certified NDT processes, like computer radiography and penetrant testing, help catch flaws before parts go into service. AMS-2175 sets the inspection criteria for these tests, making sure every casting meets strict aerospace requirements.
Key Point: Certifications and advanced testing methods guarantee that 17-4 PH stainless steel castings meet the quality and safety standards needed for aerospace applications.
Case Example: Flight-Critical Fasteners
Fasteners might look small, but they hold aircraft together. In flight-critical areas, failure is not an option. The application of 17-4 PH stainless steel casting in the aerospace field makes these fasteners tough, reliable, and resistant to corrosion. Engineers trust this alloy because it combines high strength with good ductility and toughness. After proper heat treatment, fasteners can reach tensile strengths up to 1310 MPa and hardness up to 45 HRC. This means they can handle heavy loads and resist wear, even in harsh environments.
Fatigue life also matters. 17-4 PH stainless steel shows consistent and predictable fatigue behavior, which is vital for fasteners that face repeated stress. Surface treatments can further improve their durability, helping them last through countless flight cycles.
Key Point: Flight-critical fasteners made from 17-4 PH stainless steel casting provide the strength, fatigue resistance, and reliability needed to keep aircraft safe in the air.
17-4 PH stainless steel casting stands out in aerospace for its strength, toughness, and corrosion resistance. Engineers use it for landing gear, jet engine parts, and control systems because it meets strict safety standards and lasts under stress.
Key Point: 17-4 PH stainless steel casting keeps aerospace structures safe, reliable, and ready for the future.
FAQ
What makes 17-4 PH stainless steel special for aerospace parts?
This alloy offers high strength, good corrosion resistance, and heat treatability. Engineers choose it for critical parts that need to last under stress.
Can 17-4 PH stainless steel casting handle extreme temperatures?
Yes, it performs well at temperatures up to 600°F (316°C). This makes it a solid choice for jet engines and other high-heat aerospace applications.
How do manufacturers ensure the quality of 17-4 PH castings?
They use strict certifications like AS9100D and NADCAP. Non-destructive testing checks for flaws, so every part meets tough aerospace standards.
Key Point:
17-4 PH stainless steel casting stands out for its strength, heat resistance, and strict quality control, making it a trusted material in aerospace engineering.
