How to Address Pitting Resistance Problems in 17-4 PH Stainless Steel Casting in 2025
Pitting can cause small holes in 17-4 ph stainless steel casting. These tiny pits weaken parts and may lead to sudden breaks. Many engineers saw a 17-4 ph investment casting fail in an aerospace project last year. They learned that pitting can threaten safety in 17_4 ph precision casting.
Key Point: Pitting threatens the strength and safety of stainless Steel Castings.
Key Takeaways
- Pitting in 17-4 PH stainless steel casting starts from tiny inclusions and pores, especially manganese sulfide, which weaken parts and cause corrosion in harsh environments.
- Careful control of alloy composition, heat treatment, and casting processes reduces harmful inclusions and defects, making the metal stronger and more resistant to pitting.
- Modern surface treatments like laser polishing and shot peening, combined with strict quality inspections, protect the metal surface and help prevent pitting, extending the life of critical parts.
Understanding Pitting in 17-4 PH Stainless Steel Casting
What is Pitting and Why 17-4 PH is Susceptible
Pitting is a type of corrosion that creates tiny, deep holes on the surface of metal. These pits can grow quickly and weaken the part. In 17-4 ph stainless steel casting, pitting often starts at spots where the protective layer breaks down. One main reason is the presence of manganese sulfide (MnS) inclusions. These inclusions make it easier for pits to form, especially in environments with chloride. The table below shows how different factors affect pitting:
| Aspect | Evidence Summary |
|---|---|
| Key Mechanism of Pitting Initiation | Dissolution of MnS inclusions in chloride-containing acidic media lowers local pH, forms salt films, and deposits sulfur layers that hinder re-passivation and accelerate pit growth. |
| Role of MnS Inclusions | Size, shape, and orientation of MnS inclusions influence pit stability; they act as preferential sites for pit initiation due to lack of protective passive film. |
| Chromium-Depleted Zones | Some studies report Cr-depleted zones adjacent to MnS inclusions that increase dissolution rates, though this is not universally observed, leaving some ambiguity. |
| Effect of Additive Manufacturing (SLM) | SLM-produced 17-4 PH stainless steel often lacks MnS inclusions due to rapid cooling, resulting in improved corrosion resistance and reduced pitting susceptibility. |
| Microstructural Influences | Martensitic lath size, precipitate distribution (e.g., NbC), and passive film stability affect corrosion behavior and pitting resistance. |
| Additional Factors | Porosity in AM materials can negatively affect corrosion despite reduced MnS inclusions. |
Key Point: MnS inclusions and microstructure features make 17-4 ph stainless steel casting more likely to pit, especially in harsh environments.
Causes of Pitting During Casting: Metallurgical and Process Factors
Many factors during casting can lead to pitting. Metallurgical choices, like how hot isostatic pressing (HIP) is used, change the grain size and inclusion content. Process settings, such as laser power and scanning speed, also affect porosity and microstructure. When HIP temperature increases, grain size and inclusion size grow, but porosity drops. This change helps the metal resist pitting better. The chart below shows how HIP treatment improves pitting resistance:

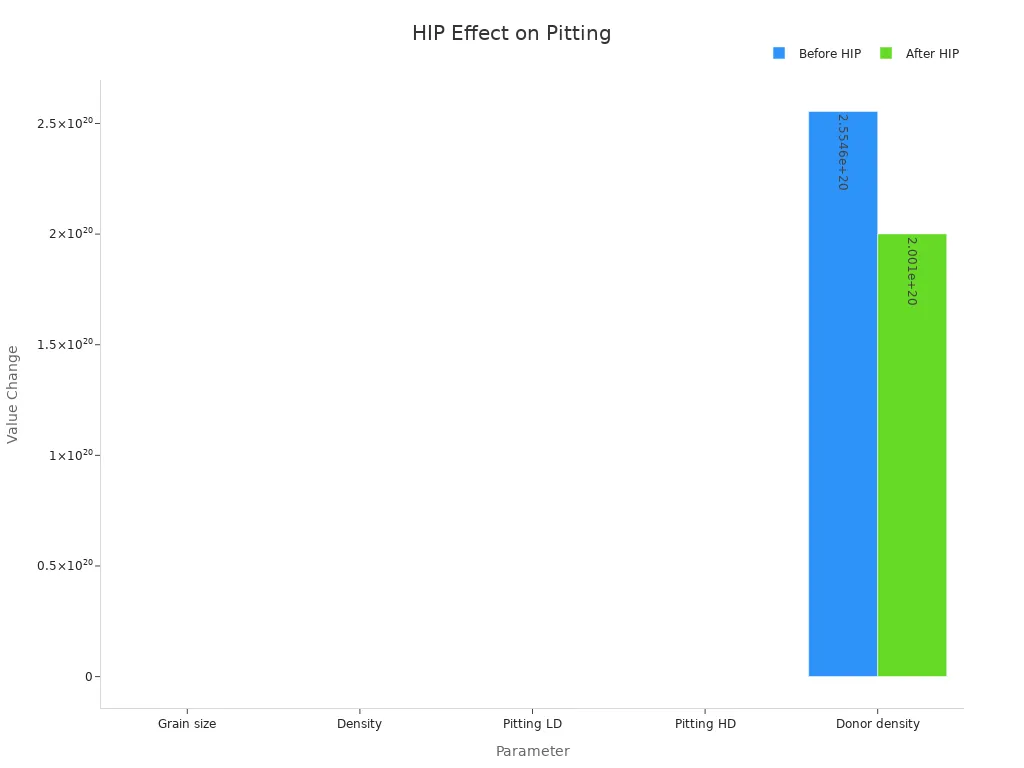

A table below highlights the improvements after HIP:
| Parameter | Before HIP | After HIP |
|---|---|---|
| Pitting Potential (Low Density) | −44 mVSCE | 179 mVSCE |
| Pitting Potential (High Density) | 265 mVSCE | 291 mVSCE |
| Electrochemical Impedance | Lower | Increased |
| Donor Density (cm⁻³) | 2.5546 × 10^20 | 2.001 × 10^20 |
Key Point: Careful control of casting and heat treatment steps can lower porosity and inclusions, making 17-4 ph stainless steel casting more resistant to pitting.
Real-World Example: Pitting in Oil & Gas Valve Castings
Oil and gas valves often use 17-4 ph stainless steel casting because it is strong and tough. However, these valves sometimes fail early due to pitting. In one case, engineers found that small MnS inclusions and leftover porosity from casting acted as starting points for pits. Chloride-rich water made the problem worse. After switching to better HIP settings and checking the microstructure, the team saw fewer pits and longer valve life.
Key Point: Real-world failures show that controlling inclusions and porosity during casting can prevent pitting and extend the service life of critical parts.
Solutions for Pitting Resistance in 17-4 PH Stainless Steel Casting in 2025
Optimized Alloy Composition and Melting Practices
Engineers have learned that the right alloy composition and melting practices can make a big difference in pitting resistance. When they use rapid solidification, like in laser powder bed fusion, the metal forms a unique microstructure. This structure looks different from traditional wrought materials. After a solution heat treatment at 1050°C, the microstructure becomes more even, and the solute spreads out. This process removes features that could weaken the protective layer on the metal.
Microstructure control helps reduce manganese sulfide (MnS) inclusions. These inclusions often start pitting corrosion. Additive manufacturing, such as selective laser melting, cools the metal quickly and leaves fewer MnS inclusions. This change improves pitting resistance. Heat treatments also remove chemical segregation, making the microstructure more uniform and boosting corrosion resistance.
Alloying elements like niobium help by forming niobium-rich carbides. These carbides let chromium stay available to form a strong protective layer. Nitrogen and retained austenite at the bottom of molten pools improve the passive film’s quality. Adjusting the chromium to nickel ratio in the alloy reduces harmful δ-ferrite, which can hurt corrosion resistance. By controlling melting parameters, engineers can avoid micro-cracks and voids that might lead to pitting.
Key Point: Careful selection of alloy elements and precise melting practices reduce harmful inclusions and phases, making 17-4 ph stainless steel casting more resistant to pitting.
Advanced Heat Treatment and Process Controls
Heat treatment plays a huge role in fighting pitting. Engineers use thermodynamic modeling and phase measurements to control the balance between austenite and ferrite phases. They avoid forming unwanted phases like sigma or chromium nitrides during heat treatment. This careful control improves pitting resistance.
Experiments show that keeping an equal mix of austenite and ferrite, while avoiding secondary phases, leads to better corrosion resistance. Scientists use regression equations and the PREN (Pitting Resistance Equivalent Number) to design alloys with higher resistance. Scanning electron microscopy (SEM) and potentiodynamic tests reveal that Al2O3-type inclusions often start pits. By managing these inclusions, engineers can further reduce pitting.
| Annealing Temperature | Corrosion Potential (E_corr) | Corrosion Current Density (I_corr) | Breakdown Potential (E_pit) | Passivation Range (ΔE) | Charge Transfer Resistance (R_ct) |
|---|---|---|---|---|---|
| As-cast | Lower | Higher | Lower | Narrower | Lower |
| 800°C | Higher | Lower | Higher | Wider | Higher |
Annealing at 800°C gives the lowest corrosion current density and the highest corrosion resistance. This temperature also increases charge transfer resistance, which means better protection against pitting. These results prove that the right heat treatment improves the microstructure, reduces defects, and stops harmful phases from growing.
Key Point: Advanced heat treatment and process controls create a balanced microstructure and remove defects, which greatly improve pitting resistance in 17-4 ph stainless steel casting.
Modern Surface Treatments and Coatings
Surface treatments have become more advanced in recent years. Laser polishing and shot peening are two popular methods. Laser polishing smooths the surface and adds tensile residual stress. This process lowers the chance of pits forming and helps the protective layer grow stronger. Shot peening increases surface hardness and creates compressive residual stress. This change widens the passive range and makes the passive film thicker and less likely to have defects.
Case studies on stainless steel parts show that these treatments boost corrosion resistance and durability. Electrochemical tests, like impedance spectroscopy and cyclic polarization, confirm these improvements. The treated surfaces show higher polarization resistance and a thicker passive film, which means better protection against pitting.
Key Point:Modern surface treatments, such as laser polishing and shot peening, make the surface stronger and more resistant to pitting, extending the life of 17-4 ph stainless steel Casting Parts.
Quality Control and Inspection Methods
Quality control is essential for catching problems before they cause pitting. Engineers use several inspection methods to find defects:
- Visual inspection checks for cracks, burrs, and pores on the surface.
- Dye penetrant inspection (DPI) finds tiny cracks and pores that are hard to see.
- Magnetic particle inspection (MPI) detects small cracks near the surface.
- X-ray inspection looks for internal defects like shrinkage and inclusions.
- Ultrasonic testing finds internal flaws such as cracks and pinholes.
- Chemical composition analysis ensures the material meets requirements.
- Casting finish inspection checks for surface irregularities.
- Dimensional analysis verifies the part matches specifications.
- Mechanical properties testing measures strength and durability.
- Casting soundness evaluation uses destructive and non-destructive tests to find hidden defects.
Engineers also use electrochemical tests, like potentiodynamic polarization and cyclic polarization, to measure how likely a part is to pit. The breakdown potential from these tests shows when pitting starts. A higher breakdown potential means the part is less likely to pit.
Key Point: Regular inspection and testing help engineers catch defects early, predict pitting risk, and ensure the quality of 17-4 ph stainless steel casting.
Case Study: Successful Reduction of Pitting in Medical Device Castings
A medical device manufacturer faced frequent pitting in their 17-4 ph stainless steel casting parts. The team decided to overhaul their process. They switched to an optimized alloy composition with less sulfur and more niobium. They also used rapid solidification and precise heat treatment to control the microstructure. After casting, they applied laser polishing to smooth the surface and shot peening to increase hardness.
The company added strict quality control steps, including dye penetrant and ultrasonic testing. Electrochemical tests showed a much higher breakdown potential and lower corrosion current density. The number of pitted parts dropped by over 80%. Device reliability improved, and the company saw fewer product recalls.
Key Point: By combining optimized alloy design, advanced processing, modern surface treatments, and strict inspection, manufacturers can greatly reduce pitting and improve the reliability of 17-4 ph stainless steel casting in critical applications.
Engineers now use several smart strategies to prevent pitting in 17-4 ph stainless steel casting:
- They refine grains and break up inclusions into tiny pieces, making pit formation harder.
- Careful heat treatment at 620°C or with post-aging boosts corrosion resistance.
- New tech and strict controls help parts last longer.
Key Point: Adopting these best practices keeps 17-4 ph stainless steel casting strong and reliable.
FAQ
What causes pitting in 17-4 PH stainless steel casting?
Pitting often starts from tiny inclusions or pores. Chloride-rich environments make it worse. Poor heat treatment or surface finish can also increase the risk.
How can engineers check for pitting before failure?
They use visual checks, dye penetrant, and ultrasonic testing. Electrochemical tests help predict pitting risk. Regular inspections catch problems early.
Do surface treatments really help stop pitting?
Yes! Laser polishing and shot peening make the surface smoother and stronger. These treatments help the protective layer resist pitting much better.
Key Point: Engineers can prevent pitting by controlling alloy design, using advanced inspections, and applying modern surface treatments. Regular checks keep 17-4 PH stainless steel casting reliable.
