How to Evaluate Stainless Steel Investment Castings for Intelligent Equipment Applications

When choosing stainless steel investment precision castings used in intelligent equipment, it is essential to focus on every detail. Engineers carefully consider factors such as material selection, dimensional accuracy, surface finish, mechanical properties, equipment compatibility, supplier reliability, and cost-effectiveness. The following table highlights the importance of precision in these applications:

Parameter	Value Range	Significance
Standard Deviation (dimensional accuracy)	Up to 0.05 mm	Ensures high repeatability and consistency, which is vital for Precision Castings used in intelligent equipment
Percentage Dimensional Deviation (PLA)	0.5% to 1.5%	Delivers superior precision and consistency, making investment precision castings ideal for high-precision requirements

By adopting a systematic, criteria-based approach, companies such as Ningbo Pingheng Machinery Co.,Ltd. can enhance the performance and longevity of stainless steel castings intelligent equipment. Advanced manufacturing facilities utilize real-time quality data and key performance indicators to maintain the reliability and efficiency of investment precision castings.

Key Point: Thorough assessment of precision castings used in intelligent equipment guarantees exceptional quality, extended service life, and flawless integration.

Key Takeaways

• Choose the right stainless steel alloy, like 316L, to ensure strong corrosion resistance and good formability for long-lasting intelligent equipment parts.
• Use advanced measurement tools and strict quality checks to achieve precise dimensions and smooth surfaces, which help equipment work reliably and fit perfectly.
• Work with experienced supplierswho provide clear certifications and strong support to get high-Quality Castings that meet tight standards and improve overall performance.

Material Selection for Stainless Steel Investment Precision Castings Used in Intelligent Equipment

Assessing Corrosion Resistance and Alloy Suitability

Engineers know that corrosion resistance is a top priority when choosing materials for intelligent equipment. Stainless steel offers excellent protection against rust and chemical attack. The right alloy makes a big difference. For example, 316L stainless steel contains extra molybdenum, which boosts its resistance to chlorides and harsh environments. This makes it a favorite for equipment that faces moisture, chemicals, or outdoor use.

Alloy composition and treatment also play a huge role in performance. Studies show that the mix of elements and how the steel is aged can change its strength and corrosion resistance. In precipitation hardening stainless steels, copper-rich phases and reversed austenite help improve both durability and resistance to corrosion. Machine learning and simulations now help engineers predict how different alloys will behave, making it easier to pick the best one for each job.

Key Point: Choosing the right alloy and understanding its corrosion resistance ensures that stainless steel investment precision castings used in intelligent equipment last longer and perform better.

Evaluating Strength and Formability for Intelligent Equipment

Strength and formability are just as important as corrosion resistance. Intelligent equipment often needs parts that can handle stress, bending, and repeated use. The right stainless steel alloy provides both toughness and the ability to be shaped into complex forms.

Let’s look at some technical data that highlights what makes a good choice:

Aspect	Details
Chemical Composition	Chromium (15.0-17.5%), Nickel (3.0-5.0%), Copper (3.0-5.0%), Niobium (0.15-0.45%)
Mechanical Properties	High hardness (Rockwell C ~36), high ductility, elastic modulus 190-210 GPa
Heat Treatment	Soaking at 1038°C, aging at 482°C to 760°C for best strength and formability
Forming Capability	Can be formed with standard methods, but needs strong equipment due to high strength
Forging/Hot Working	Forged at 1010°C, pre-soaked at 1177°C, hot worked at 1038°C, then solution treated

This table shows that the right mix of elements and careful heat treatment give stainless steel both strength and flexibility. For example, AISI 316L stainless steel has an ultimate tensile strength of 560 MPa and can stretch up to 50% before breaking. This balance means it can be shaped into detailed parts without cracking, which is perfect for intelligent equipment.

Key Point: The right alloy and processing steps give stainless steel investment precision castings used in intelligent equipment the strength and formability needed for demanding applications.

Case Example: Selecting 316L Stainless Steel for Smart Sensor Enclosures

Smart sensor enclosures need to protect sensitive electronics from moisture, chemicals, and physical damage. 316L stainless steel stands out as a top choice for these enclosures. It resists corrosion even in salty or humid environments. Its high ductility allows manufacturers to create thin, complex shapes that fit tight spaces inside intelligent equipment.

Here’s a quick look at why 316L stainless steel works so well:

Property	Value
Ultimate Tensile Strength	560 MPa
Yield Tensile Strength	290 MPa
Elongation at Break	50%
Hardness (Rockwell B)	79
Modulus of Elasticity	193 GPa

Ningbo Pingheng Machinery Co.,Ltd. often recommends 316L for sensor housings because it combines strength, corrosion resistance, and easy fabrication. This alloy helps ensure that smart sensors work reliably, even in tough industrial settings.

Key Point: 316L stainless steel provides the ideal mix of protection, strength, and formability for smart sensor enclosures in intelligent equipment.

Dimensional Accuracy and Tolerances in Stainless Steel Investment Precision Castings Used in Intelligent Equipment

Verifying Precision for Complex Component Designs

Dimensional accuracy matters a lot when engineers design parts for intelligent equipment. They often use 3D X-ray computed tomography (CT) to check both the inside and outside of complex castings. This technology gives high-resolution images without damaging the part. It helps engineers spot any small mistakes or shape changes that could affect how the equipment works. For example, machine vision systems can measure straightness and roundness with a relative error of less than 10%. These systems work fast, checking straightness in just 98.5 milliseconds and roundness in 69.3 milliseconds. That speed and accuracy help keep production lines moving and ensure every part fits perfectly.

Key Point: Advanced measurement tools like 3D CT and machine vision help engineers verify the precision of complex stainless steel investment precision castings used in intelligent equipment.

Achieving Tight Tolerances in Automated Systems

Automated systems need parts that fit together with almost no room for error. Manufacturers sometimes need to control part sizes down to just a few microns—about the width of two human hairs. For example, a turbocharger maker had to stretch an impeller wheel by only 140 microns, with a tolerance of ±5 microns, to make sure the bearing worked right. To reach this level of precision, they use special quality control steps:

• Tight tolerances as low as ±0.0002 inch (5 microns) need careful adjustments.
• Metric mode allows for finer control of part sizes.
• Targeting 80% of the tolerance band helps tools last longer and keeps parts consistent.
• Warm-up programs manage machine temperature changes.
• Choosing the right tool direction reduces wear and keeps tolerances tight.

Key Point: Holding tight tolerances through careful quality control ensures automated systems run smoothly and reliably.

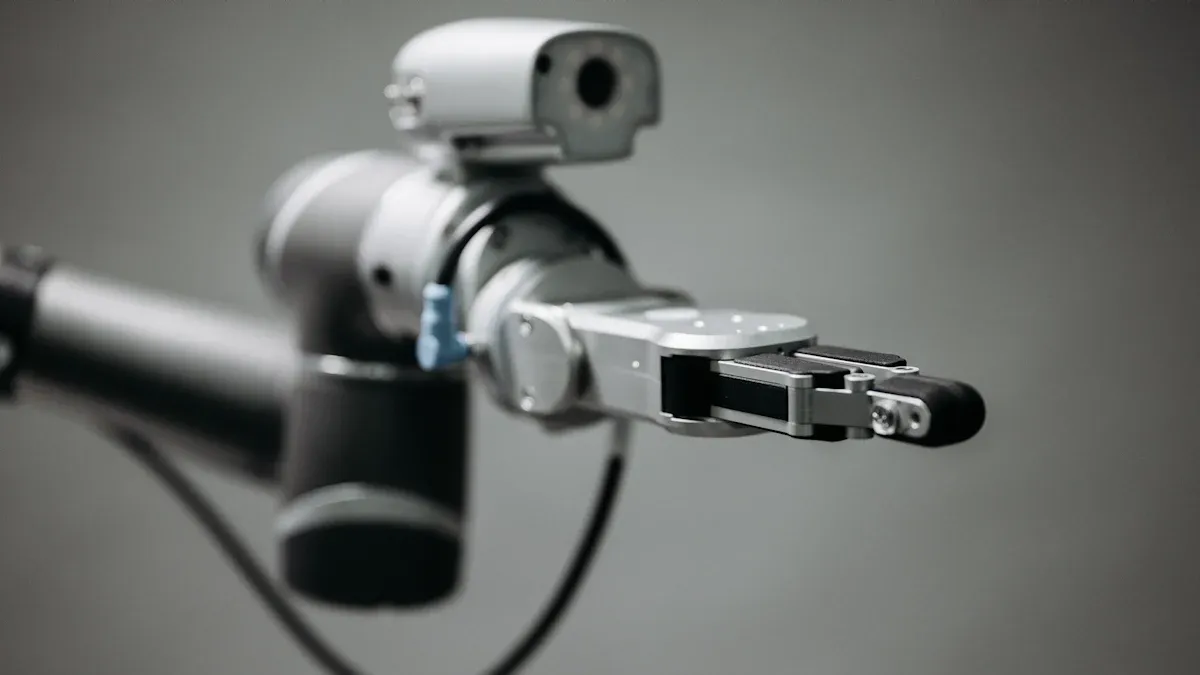

Case Example: Robotic Arm Joint Castings with High Precision Requirements

Robotic arms in smart factories need joints that move smoothly and stop exactly where they should. Even a tiny error in a joint’s size can cause the robot to miss its mark. Manufacturers use stainless steel investment precision castings used in intelligent equipment to make these joints. They rely on high-precision measurement tools and strict quality checks to keep every joint within the right size range. This attention to detail means the robotic arm can repeat the same motion thousands of times without problems.

Key Point: High-precision castings and strict tolerances help robotic arms perform accurate, repeatable movements in intelligent equipment.

Surface Finish and Quality of Stainless Steel Investment Precision Castings Used in Intelligent Equipment

Inspecting Surface Smoothness and Defect-Free Castings

Surface finish matters a lot in intelligent equipment. Smooth, defect-free castings help parts fit together and work well. Many manufacturers use Coordinate Measuring Machines (CMM) to check the surface of complex parts. CMMs scan the surface and create a detailed map of every bump and curve. They can spot even tiny flaws that might cause problems later.

Some practical inspection steps include:

• Automated CMM routines for fast and accurate checks
• In-process inspection checkpoints to catch issues early
• First article inspections to confirm the first part meets all standards
• Dense point cloud data to validate freeform surfaces and tricky shapes
• Statistical Process Control (SPC) data to track quality over time

These steps help companies like Ningbo Pingheng Machinery Co.,Ltd. deliver high-quality stainless steel investment precision castings used in intelligent equipment.

Tip: Regular surface inspections reduce rework and improve product yield.

Impact of Surface Quality on Sensor and Electronics Integration

Surface quality affects how well sensors and electronics fit inside their housings. A rough or uneven surface can make it hard to seal out dust or moisture. It can also cause stress on delicate parts. Smooth surfaces help create tight seals and protect sensitive electronics. This is especially important in smart devices that need to work in tough environments. Good surface finish also supports better heat transfer and electrical grounding.

Case Example: Medical Diagnostic Device Housings with Critical Surface Requirements

Medical diagnostic devices need very smooth and clean housings. Even a small scratch or bump can trap bacteria or interfere with readings. Manufacturers use automated CMM inspection routines to check every housing. These routines create dense point cloud data to measure every detail. By using CMMs, companies have improved dimensional yield from 93% to 99% and cut rework rates by over 40%. Fast, automated checks also help deliver parts on time while keeping tolerances within ±5 microns. This level of quality ensures that medical devices stay safe and reliable.

Key Point: Careful surface inspection and advanced measurement tools help ensure stainless steel investment precision castings used in intelligent equipment meet strict quality standards.

Mechanical Properties and Testing of Stainless Steel Investment Precision Castings Used in Intelligent Equipment

Evaluating Mechanical Strength, Hardness, and Durability

Mechanical strength, hardness, and durability play a big role in how well stainless steel investment precision castings used in intelligent equipment perform. Engineers use advanced simulations to predict how the metal will behave during solidification and heat treatment. These simulations help them control the microstructure and avoid casting defects. For example, studies on 316L stainless steel show that changing laser power or scan speed can affect density, hardness, and shear strength. Engineers run many experiments and use statistical models to find the best settings for each property. They also look at how the direction of building a part changes its strength. This approach gives them clear numbers to guide their process.

Key Point: Using simulations and experiments helps engineers achieve the right balance of strength, hardness, and durability for each application.

Reviewing Metallurgical Testing and Certification Standards

Testing and certification standards help ensure that every casting meets strict quality requirements. Engineers use a variety of tests to check properties like tensile strength, impact resistance, and fatigue life. The table below shows some common tests and standards:

Property Category	Description / Test Method	Relevant ASTM Standards / Notes
Tensile Properties	Tensile strength, yield strength, elongation, reduction of area	Specified in national standards; used for alloy selection based on mechanical property requirements
Impact Properties	Charpy V-notch impact test (energy absorbed during fracture)	Expressed in foot-pounds in US specifications
Fatigue Properties	Stress vs. number of cycles (S-N curve), endurance limit	Testing to 10 million cycles considered sufficient for steel
Hardness and Hardenability	Resistance to indentation; depth and distribution of hardness after quenching	Important for design; carbon steels less hardenable than low alloy steels
Radiographic Inspection	Evaluation of internal discontinuities using reference radiographs	ASTM E192 (investment castings), E446, E186, E280 (thickness-based groups), E390 (welds)

These tests help engineers catch any problems before the parts go into service. Certification standards like ASTM and ISO make sure everyone follows the same rules.

Key Point: Standardized tests and certifications give confidence that castings will perform as expected in intelligent equipment.

Case Example: Fatigue Testing for High-Cycle Actuator Components

Fatigue testing checks how long a part can last when it faces repeated stress. For actuator components, this is very important. Engineers use special machines to apply thousands or even millions of cycles to a test piece. They follow standards like ASTM E467-21 and ISO 1099 to keep the tests fair and accurate. For example, one study used a servo hydraulic machine to test tool steel castings at 10 Hz. The team polished the samples to a smooth finish and measured microhardness and microstructure. They controlled the load and checked for cracks using ultrasonic testing. These steps helped them understand how the part would behave in real-world use.

Key Point: Careful fatigue testing and strict standards help ensure actuator components can handle high-cycle use without failure.

Compatibility of Stainless Steel Investment Precision Castings with Intelligent Equipment Systems

Integrating Castings with Sensors, Electronics, and Moving Parts

Engineers often face challenges when they combine castings with sensors, electronics, and moving parts. They must choose materials that can handle high temperatures, since some sensors may melt or get damaged during processing. For example, sensors need melting points higher than the temperatures used in casting or sintering. Material properties like brittleness and thermal expansion also play a big role. If the casting expands too much or cracks, the sensors and electronics might fail.

Some advanced techniques, like the “Stop and Go” method in additive manufacturing, allow engineers to pause production and insert sensors directly into parts. This method works well for embedding sensors, but it is not possible in continuous casting because the flow can move the sensors out of place. Engineers also use special sensors, such as inductive proximity sensors and piezoelectric sensors, to monitor temperature, force, and other conditions inside the equipment. Wireless components, like RFID antennas, help send real-time data, but their performance can drop if temperatures or vibrations get too high.

Key Point: Successful integration depends on matching material properties with sensor requirements and using the right manufacturing techniques.

Ensuring Seamless Operation in Automated Assemblies

Automated assemblies need every part to work together smoothly. Engineers select materials like 16MnCr5 steel for wear resistance or titanium alloys for strength and corrosion resistance. These choices help ensure that castings, sensors, and moving parts all perform well together. Real-time monitoring through embedded sensors lets operators track temperature, pressure, and force. This data supports predictive maintenance, which helps prevent breakdowns before they happen.

Manufacturing constraints, such as high sintering temperatures, can limit which sensors can be used. Engineers must plan carefully to avoid damaging sensitive electronics during production. When they get it right, the whole system runs more efficiently and reliably.

Key Point: Careful material selection and planning allow automated assemblies to operate without interruption.

Case Example: Integration of Cast Housings in Automated Packaging Machines

Automated packaging machines rely on cast housings that protect sensors and electronics from heat, vibration, and dust. Engineers often embed piezoelectric sensors inside these housings to measure force and detect problems early. They use wireless communication components to send real-time data to control systems. By choosing the right materials and embedding sensors during production, companies like Ningbo Pingheng Machinery Co.,Ltd. help packaging machines run smoothly and avoid costly downtime.

Key Point: Well-integrated cast housings with embedded sensors improve machine reliability and support real-time monitoring.

Supplier Evaluation for Stainless Steel Investment Precision Castings Used in Intelligent Equipment

Assessing Supplier Experience and Quality Control (Highlight: Ningbo Pingheng Machinery Co.,Ltd.)

Choosing the right supplier can make or break a project. Companies look for suppliers with a proven track record and strong quality control systems. Ningbo Pingheng Machinery Co.,Ltd. stands out because they combine years of experience with advanced production equipment. Their team uses specialized tools and follows strict quality checks at every step. This approach helps them deliver castings that meet tight tolerances and high standards.

Industry data shows that top suppliers document their experience by using rigorous quality control measures. For example, CMT Imports details how they use specialized equipment and strict checks to ensure every casting is flawless. Fictiv’s research also points out that suppliers with strong quality management systems, inspection reports, and low scrap rates consistently deliver better results. The Performance Review Institute found that better casting quality systems can cut defects in half and boost supplier credibility. Qarma Quality & Compliance highlights the importance of checks at every stage, from incoming materials to final inspection. These steps help suppliers catch problems early and keep quality high.

Key Point: Suppliers like Ningbo Pingheng Machinery Co.,Ltd. use experience and strict quality control to deliver reliable, high-precision castings.

Reviewing Documentation, Certifications, and After-Sales Support

Documentation and certifications give buyers confidence. Reliable suppliers provide clear inspection reports, test results, and certificates with every order. These documents show that the castings meet all requirements and pass every test. Certifications like ISO 9001, ISO 14001, and ISO 45001 prove that a supplier follows international standards for quality, safety, and the environment. For IoT and medical device components, ISO 13485 and ANSI/ESD S20.20 are also important. These certifications show that the supplier can handle sensitive electronics and meet strict regulatory rules.

Certification	Description	Why It Matters for IoT Components
ISO 9001	Quality management and continuous improvement	Ensures consistent quality and customer satisfaction
ISO 14001	Environmental management	Supports sustainable manufacturing
ISO 45001	Occupational health and safety	Protects workers and ensures safe production
ISO 13485	Medical device quality management	Meets strict regulatory and quality requirements for medical parts
ANSI/ESD S20.20	Electrostatic discharge control	Protects sensitive electronic components from static damage

Third-party audits and certifications, such as those accredited by the ANSI National Accreditation Board, add another layer of trust. Good suppliers also offer strong after-sales support. They help with technical questions, provide replacement parts, and respond quickly to any issues.

Key Point: Clear documentation, recognized certifications, and responsive after-sales support show that a supplier is trustworthy and ready for long-term partnerships.

Case Example: Choosing a Reliable Supplier for Industrial IoT Device Components

Real-world examples show the value of picking the right supplier. Companies like Sensor-Technik Wiedemann (STW) have helped improve fleet management for London buses by providing reliable IoT solutions. Their remote monitoring system reduced bus particulates by 99% and nitrogen oxides by 90%. Geico Taikisha Group used digital twins and data simulations to optimize auto body paint shops, cutting downtime and costs. SMC’s smart field services detected and reduced air leaks in pneumatic equipment, saving money and preventing breakdowns. Dürr installed IoT sensors on robotic paint applicators, which improved product quality and stopped defective runs.

Supplier / Company	Application Area	IIoT Solution / Approach	Performance Improvement / Outcome
Sensor-Technik Wiedemann (STW)	Fleet management for London buses	Remote monitoring of emissions and vehicle data	Reduced particulates by 99%, NOx by 90%, improved efficiency
Geico Taikisha Group	Automated auto body paint shops	Digital twins and simulations	Optimized performance, predicted maintenance, reduced downtime
SMC	Pneumatic equipment manufacturing	Smart field services for air leak detection	Reduced costs, minimized unplanned downtime
Dürr	Automotive painting industry	IoT sensors for predictive maintenance	Prevented defects, optimized cleaning, improved product quality

These examples prove that working with experienced, certified suppliers leads to better performance, fewer problems, and lower costs in industrial IoT applications.

Key Point: Reliable suppliers with strong quality systems and certifications help companies achieve better results and long-term success in IoT device manufacturing.

Cost vs. Value Considerations for Stainless Steel Investment Precision Castings Used in Intelligent Equipment

Balancing Initial Cost with Long-Term Performance and Reliability

Companies often face a tough choice: spend more upfront or risk higher costs later. Investing in advanced casting technology and skilled labor can push initial expenses above $500,000. However, this investment brings long-term rewards. Businesses see better production efficiency, higher precision, and easier compliance with industry standards. Over time, these benefits can outweigh the early costs. Some companies, like Metalmaster, have shown that reinvesting in technology and people can boost revenue by up to 30% within two years. They accept smaller profits at first, knowing that reliability and growth will follow.

Key Point: Higher initial costs can lead to greater reliability and profits in the long run.

Evaluating Total Cost of Ownership in Intelligent Equipment Applications

Looking at just the purchase price does not tell the whole story. Total cost of ownership (TCO) includes everything from maintenance and repairs to downtime and energy use. Smart companies use different methods to measure value over time:

• Simple ROI and Payback Period help with quick, short-term decisions.
• Internal Rate of Return (IRR) and Economic Value Added (EVA) give a bigger picture for long-term planning.
• Productivity ROI focuses on how much more efficient equipment becomes.
• Non-financial benefits, like customer satisfaction and brand reputation, also matter.

Choosing the right method depends on the project’s goals and timeline. These tools help companies see the real value of their investment, not just the sticker price.

Key Point: TCO analysis helps businesses make smarter choices by looking beyond the initial price tag.

Case Example: Cost-Benefit Analysis for High-Precision Valve Components

A manufacturer needed high-precision valve components for automated systems. They compared two options: a lower-cost casting with basic features and a premium casting with advanced technology. The premium option cost more at first but offered tighter tolerances and longer service life. Over three years, the company saved money on fewer replacements and less downtime. They also improved product quality, which boosted customer satisfaction. The initial investment paid off faster than expected.

Option	Initial Cost	Maintenance Cost (3 yrs)	Downtime	Product Quality	Overall Savings
Basic Casting	Low	High	Frequent	Standard	Low
Premium Casting	Higher	Low	Rare	Excellent	High

Key Point: Investing in quality components can reduce long-term costs and improve performance.

---

Evaluating stainless steel castings for intelligent equipment takes careful steps. Readers should check material, accuracy, surface, and mechanical tests. They also need to review supplier experience. Companies like Ningbo Pingheng Machinery Co.,Ltd. help with quality and support. For best results, use this checklist before making a decision:

• Review material and corrosion resistance
• Confirm dimensional accuracy
• Inspect surface finish
• Check mechanical properties
• Assess supplier certifications and support

FAQ

What makes stainless steel investment castings ideal for intelligent equipment?

Stainless steel investment castings offer high precision, corrosion resistance, and strength. These qualities help intelligent equipment run smoothly and last longer.

How does Ningbo Pingheng Machinery Co.,Ltd. ensure casting quality?

Ningbo Pingheng Machinery Co.,Ltd. uses advanced inspection tools and strict quality checks. Their team reviews every casting before shipping.

Tip: Always ask for inspection reports and certifications from your supplier.

Can these castings handle harsh environments?

Yes. Stainless steel investment castings resist moisture, chemicals, and temperature changes. They work well in tough industrial settings.
