How to Improve the Quality of Machining Castings
Precision plays a vital role in machining castings, ensuring components meet exact specifications to enhance performance and reliability. Advanced technologies, such as Industry 4.0 and automation, have revolutionized the production of precision metal parts by improving quality, increasing safety, and reducing costs. Additionally, statistical process control (SPC) enables machinists to manufacture casting metal parts with exceptional accuracy and consistent quality. Companies like Ningbo Pingheng Machinery Co., Ltd. specialize in delivering high-quality machining castings and precision metal parts to support industries such as automotive and engineering.
Key Takeaways
- Accuracy is very important when machining castings. It helps parts fit perfectly, cuts waste, and works better.
- Taking care of machines often is necessary. It stops sudden problems and keeps them working well.
- Picking the correct tools for each material makes machining better. Good tool choices last longer and work faster.
Understanding the Basics of Machining Castings
Defining Machining Castings
Machining castings refers to the process of shaping and finishing raw cast components to meet precise specifications. Raw castings often have imperfections like seams or surface irregularities caused by the molding process. These imperfections are removed through a process called "fettling," which prepares the casting for machining. Casting itself is a versatile manufacturing method that allows for the creation of intricate shapes using molten material. It accommodates both ferrous and non-ferrous metals, making it suitable for a wide range of industries.
The industry relies on standards to define the quality of machining castings. For example, ASTM E125 provides guidelines for surface quality, while ASTM A27 and ASTM A148 specify material properties for structural castings. These standards ensure consistency and reliability in the final product.
Common Challenges in Machining Castings

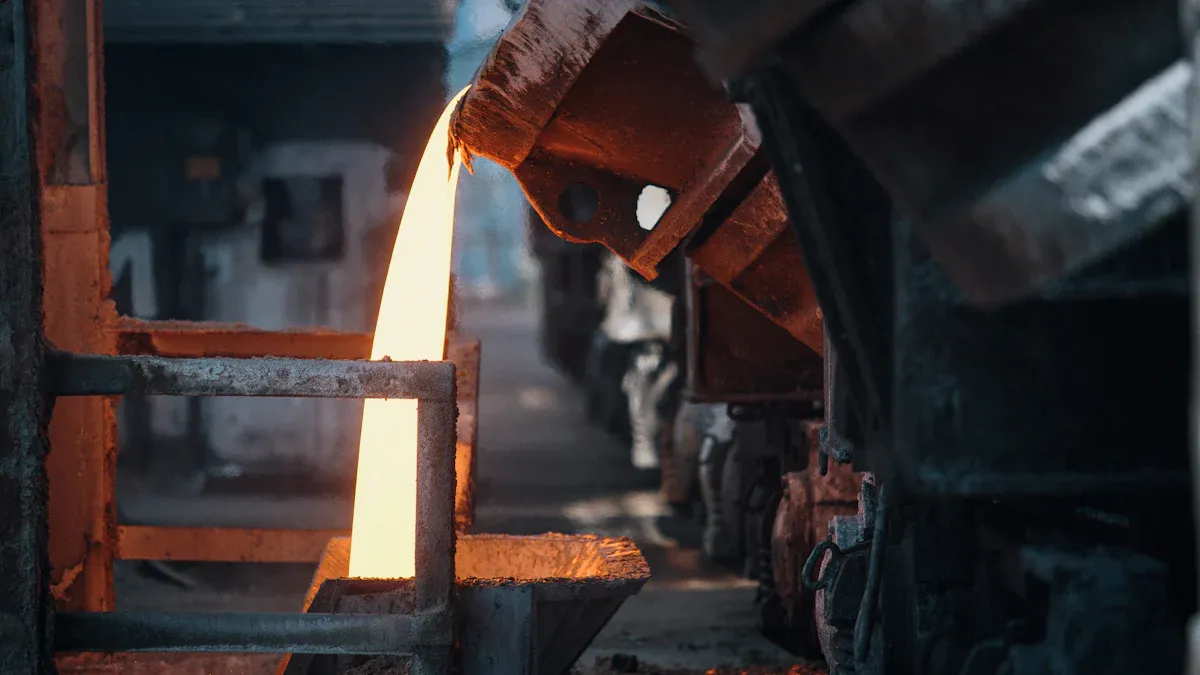

Machining castings comes with its own set of challenges. Cooling rates during the casting process must be carefully controlled to prevent thermal stress and distortion. Residual stress analysis is another critical step to identify areas prone to cracking. Additionally, defects like porosity or inclusions can occur if venting and gating systems are not properly designed.
| Challenge | Solution |
|---|---|
| Cooling Rate Control | Implement controlled cooling rates to minimize stress buildup. |
| Residual Stress Analysis | Use advanced techniques to identify and address high-stress areas. |
| Quality Inspection | Conduct rigorous inspections, including non-destructive testing. |
Proper mold handling and maintenance also play a significant role in avoiding defects. By addressing these challenges, manufacturers can improve the quality of machining castings and reduce production costs.
Why Precision Matters in Machining Castings
Precision is the cornerstone of machining castings. It ensures that components meet exact specifications, which is crucial for industries like automotive, engineering, and power generation. High precision reduces waste, improves performance, and enhances the reliability of the final product.
Casting allows for the production of complex shapes, but achieving tight tolerances requires advanced machining techniques. For instance, using high-precision measuring tools ensures that components meet dimensional requirements. This level of accuracy is especially important for applications where safety and performance are critical.
Tip: Investing in precision machining not only improves product quality but also saves costs in the long run by reducing material waste and rework.
Key Factors Influencing Machining Quality
Material Properties and Their Impact
The properties of materials play a critical role in determining the quality of machining castings. Materials like nodular cast iron (NCI) outperform gray cast iron in terms of dimensional precision and rigidity. This makes NCI a preferred choice for applications requiring high accuracy. The composition and processing of materials influence their mechanical properties, which directly affect machining outcomes. Residual stresses from the casting process can also impact precision, especially in large components like machine tool beds. Selecting the right material ensures better performance and reduces the risk of defects.
Machine Tool Accuracy and Maintenance
Machine tool accuracy is essential for achieving consistent results. Regular calibration and maintenance keep machines within tolerance limits, ensuring parts meet specifications. High-quality CNC machines with rigid designs and precise components deliver better accuracy. Additionally, factors like cutting speed and feed rate must be optimized to enhance machining precision. Measurement system analysis (MSA) helps identify errors in the process, ensuring tighter tolerances. Neglecting maintenance can lead to positioning errors, which compromise the quality of machining castings.
Cutting Tool Selection and Wear
Cutting tools significantly influence machining precision. Dull or worn tools can create uneven surfaces, leading to poor-quality parts. Increased tool wear requires higher cutting forces, which may push parts out of acceptable tolerances. In some cases, multiple types of wear, such as chipping or cratering, occur simultaneously, compounding the problem. Choosing the right cutting tool for the material and regularly monitoring its condition can prevent these issues. Proper tool maintenance reduces rework and scrap, saving time and resources.
Environmental Factors Affecting Precision
Environmental conditions can subtly impact machining quality. Temperature fluctuations, for instance, cause thermal expansion in both the machine and the workpiece, leading to dimensional deviations. Vibrations from nearby equipment or improper machine setup can also affect precision. Maintaining a stable environment with controlled temperature and minimal external disturbances ensures consistent results. Even small changes in the environment can have a noticeable effect on machining castings, making it essential to monitor and manage these factors.
Actionable Tips for Improving Machining Castings

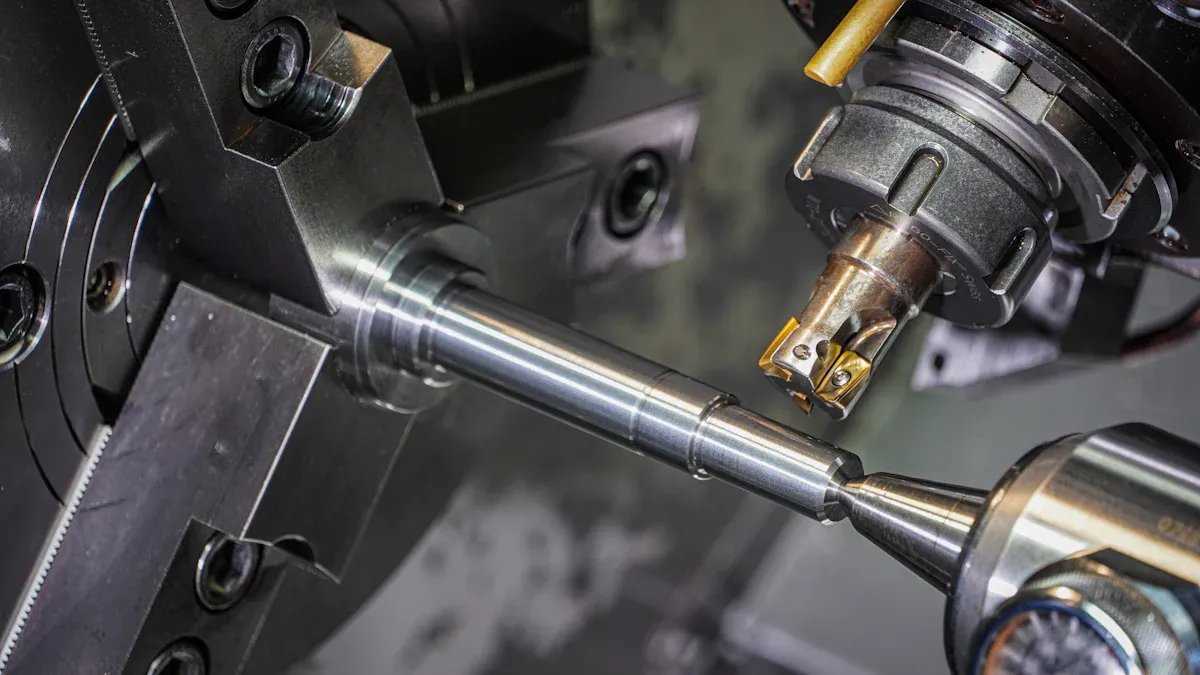

Selecting the Right Cutting Tools for Specific Materials
Choosing the right cutting tools is essential for achieving precision in machining castings. Tools must withstand high temperatures and maintain stable properties during machining. For example, materials with high hardness and wear resistance ensure clean cuts and longer tool life. The table below highlights key criteria for selecting cutting tools:
| Criteria | Description |
|---|---|
| Stability of Properties | The cutting tool material must maintain stable physical and chemical properties at high temperatures. |
| Hardness | High hardness is crucial as it directly influences the selection of cutting tool material. |
| Wear Resistance | The material must exhibit high wear resistance due to continuous friction during machining. |
| Mechanical Properties | Acceptable fracture toughness and flexural strength are necessary for effective performance. |
Matching the tool to the material ensures better results and reduces tool wear, saving time and costs.
Optimizing Cutting Parameters for Precision
Fine-tuning cutting parameters like feed rate, spindle speed, and depth of cut significantly impacts machining quality. Higher cutting speeds, for instance, reduce cutting forces, leading to smoother finishes. The table below illustrates how these parameters affect machining outcomes:
| Cutting Parameter | Effect on Cutting Forces | Effect on Surface Roughness |
|---|---|---|
| Depth of Cut | Increases with higher depth and feed rate | Not specified in detail |
| Feed Rate | Fluctuates linearly with changes | Not specified in detail |
| Cutting Speed | Higher speeds reduce cutting forces | Not specified in detail |
Optimizing these parameters minimizes errors and ensures consistent precision.
Maintaining Equipment for Consistent Performance
Regular maintenance of machining equipment is non-negotiable for consistent performance. Strategies like condition-based maintenance prevent sudden failures, while proactive maintenance enhances efficiency. The table below outlines the benefits of different maintenance approaches:
| Maintenance Strategy | Benefits |
|---|---|
| Condition-based maintenance | Increases reliability, prevents sudden failures, and enhances production output. |
| Proactive maintenance | Improves efficiency, reduces costs, and ensures critical-component maintenance. |
| General tool maintenance | Enhances productivity, increases tool reliability, and improves machine maintenance efficiency. |
Routine upkeep ensures machines operate within tolerance limits, reducing downtime and improving machining castings quality.

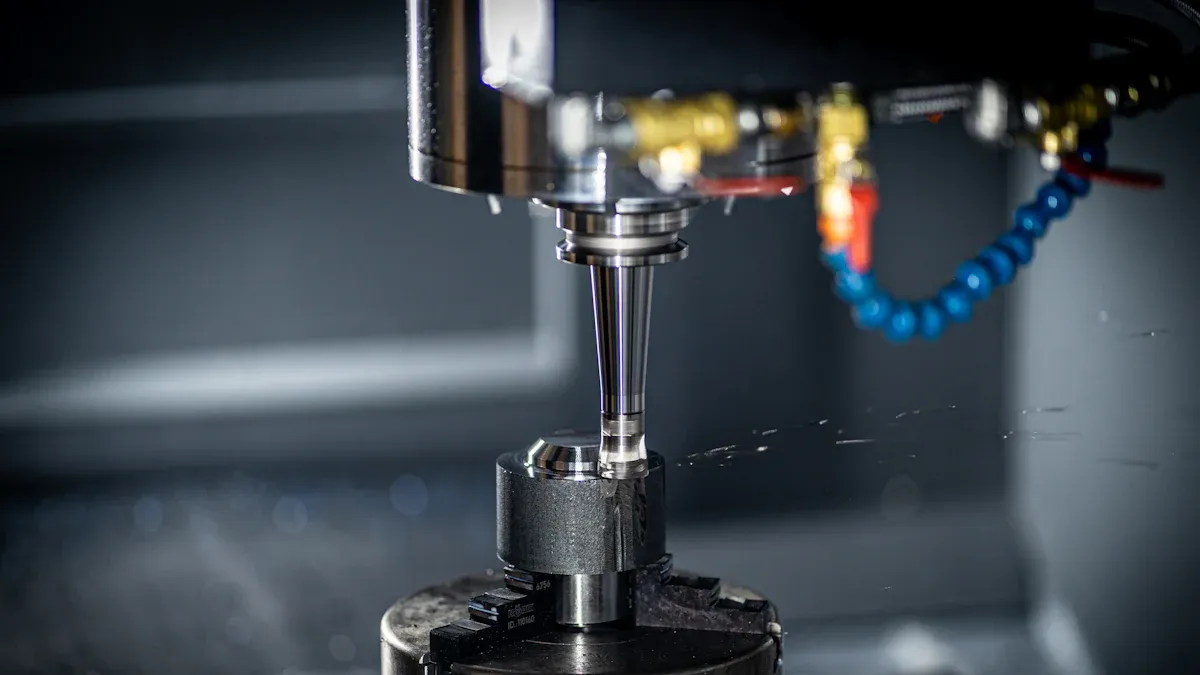

Using Effective Coolants and Lubricants
Coolants and lubricants play a vital role in machining processes. They absorb heat, reduce friction, and prevent tool wear. For instance, coolants with high heat absorption capacity prevent overheating, while those with excellent lubrication properties improve surface finishes. Proper coolant selection enhances efficiency and extends tool life, directly impacting the quality of machining castings.
Implementing Proper Fixturing and Workholding Techniques
Proper fixturing ensures the workpiece remains stable during machining. Secure workholding minimizes movement, reducing errors and ensuring precision. This is especially critical for complex designs or high-torque operations. Reliable fixturing techniques improve accuracy and reduce the need for rework, saving both time and resources.
Conducting Regular Quality Control Inspections
Quality control inspections uncover hidden issues before they escalate. Regular evaluations track equipment performance and verify adherence to specifications. For instance:
- Inspect semi-finished goods to ensure they meet standards.
- Perform checks throughout the manufacturing process.
- Identify defects early to prevent waste.
Integrating inspection results into production processes helps maintain consistent quality and sets benchmarks for improvement.
Advanced Techniques and Technologies for Machining Castings
On-Machine Inspection for Real-Time Adjustments
On-machine inspection allows manufacturers to monitor machining processes in real time, ensuring immediate adjustments when deviations occur. This technique uses advanced sensors and analytics to track metrics like quality, setup times, and equipment performance. For example, quality analytics can identify process inadequacies, while tracking setup times highlights areas for improvement.
| Metric/Case Study | Description |
|---|---|
| Quality Analytics | Identifies production process issues and builds alert systems. |
| Predict Equipment Failures | Provides actionable insights for factory workers to enhance efficiency. |
| Optimize Setup Times | Tracks setup times to encourage timely completion and reduce delays. |
By categorizing downtime and analyzing machine timelines, engineers can pinpoint inefficiencies and implement corrective actions. This proactive approach minimizes errors and ensures consistent machining castings quality.
Leveraging CAD/CAM Software for Enhanced Precision
CAD/CAM software bridges the gap between design and manufacturing, enabling machinists to achieve unparalleled precision. These tools allow for the creation of detailed 3D models, which guide machining processes with exceptional accuracy. Advanced simulation features help predict potential issues, reducing trial-and-error during production.
For instance, integrating IoT with CAD/CAM systems enhances real-time monitoring. Studies show that IoT-enabled systems improve decision-making and operational efficiency by collecting and analyzing sensory data. This combination ensures that machining castings meet tight tolerances and maintain high-quality standards.
Automation and CNC Programming for Consistency
Automation and CNC programming revolutionize machining by delivering consistent results with minimal human intervention. CNC machines follow pre-programmed instructions, ensuring uniformity across production runs. Automated inspection systems further enhance quality by checking parts during machining.
| Evidence Type | Description |
|---|---|
| Statistical Quality Data | Tracks production quantities, defect rates, and rework. |
| Automated Inspection Systems | Automatically verify the quality of machined parts. |
| Statistical Process Control | Monitors production data to identify trends and prevent quality issues. |
Implementing statistical process control (SPC) helps detect potential problems early, allowing for timely corrections. This approach reduces defects and ensures consistent machining quality.
Using High-Precision Measuring Tools for Tight Tolerances
High-precision measuring tools are essential for maintaining tight tolerances in machining castings. These tools, combined with stable workshop conditions, ensure dimensional accuracy. Temperature fluctuations can cause thermal expansion, leading to deviations. Maintaining a controlled environment minimizes these risks.
On-machine inspection systems also play a crucial role. They provide real-time accuracy checks, allowing operators to make adjustments during machining. Investing in high-quality CNC machines further enhances precision, as their tolerance levels directly impact the final product. These measures ensure that machining castings meet exact specifications, even for the most demanding applications.
Improving machining castings starts with understanding material properties and maintaining equipment. Leveraging advanced technologies ensures consistent quality. Applying these techniques offers long-term benefits, including cost savings and enhanced reliability.
| Benefit Type | Description |
|---|---|
| Energy Efficiency | Zinc die casting requires less energy to reach mold temperatures, leading to lower operational costs. |
| Material Usage | The process minimizes waste by allowing for thin-walled and intricate designs, optimizing resource utilization. |
| Durability | Components produced have excellent corrosion resistance and require less maintenance, extending service life. |
| Lifecycle Cost Reduction | Reduced maintenance needs lead to long-term cost savings, especially for high-performance products. |
| Tooling Cost Benefits | Although initial tooling costs are high, durable molds offset these costs over time. |
By adopting these strategies, manufacturers can reduce waste, improve durability, and achieve greater efficiency.
FAQ
What is the most important factor in improving machining castings?
Precision is key. It ensures components meet exact specifications, reducing waste and improving performance. High-quality tools and proper maintenance also play a significant role.
How often should machining equipment undergo maintenance?
Regular maintenance is essential. Monthly checks for wear and tear, along with annual calibration, help ensure consistent performance and prevent unexpected breakdowns.
Why is material selection critical in machining castings?
Different materials have unique properties that affect machining outcomes. Choosing the right material ensures better precision, reduces defects, and enhances the durability of the final product.
Tip: Always consult material standards and guidelines to match the material with the application requirements.
