Investment Casting Applications Explained Industry by Industry
Investment castingis a precision manufacturing process for complex metal components. This method is crucial for industries requiring high-quality, intricate parts. The global Investment Casting market was valued at USD 19 billion in 2023, showcasing its significant role. Experts project the market will expand at a Compound Annual Growth Rate (CAGR) of 4.6% between 2024 and 2029. This growth highlights the increasing demand for investment casting applications. Explore ourProducts and feel free to Contact us for more information.
Key Takeaways
- Investment casting makes very precise metal parts. It creates complex shapes with smooth surfaces for many industries.
- Many industries use investment casting. These include aerospace, medical, automotive, and energy for critical parts.
- This method works with many metals. It helps make strong, reliable parts for different needs.
Understanding the Advantages of Investment Casting
Investment casting offers many benefits. These advantages make it a top choice for making metal parts in various industries.
Precision and Intricate Geometries

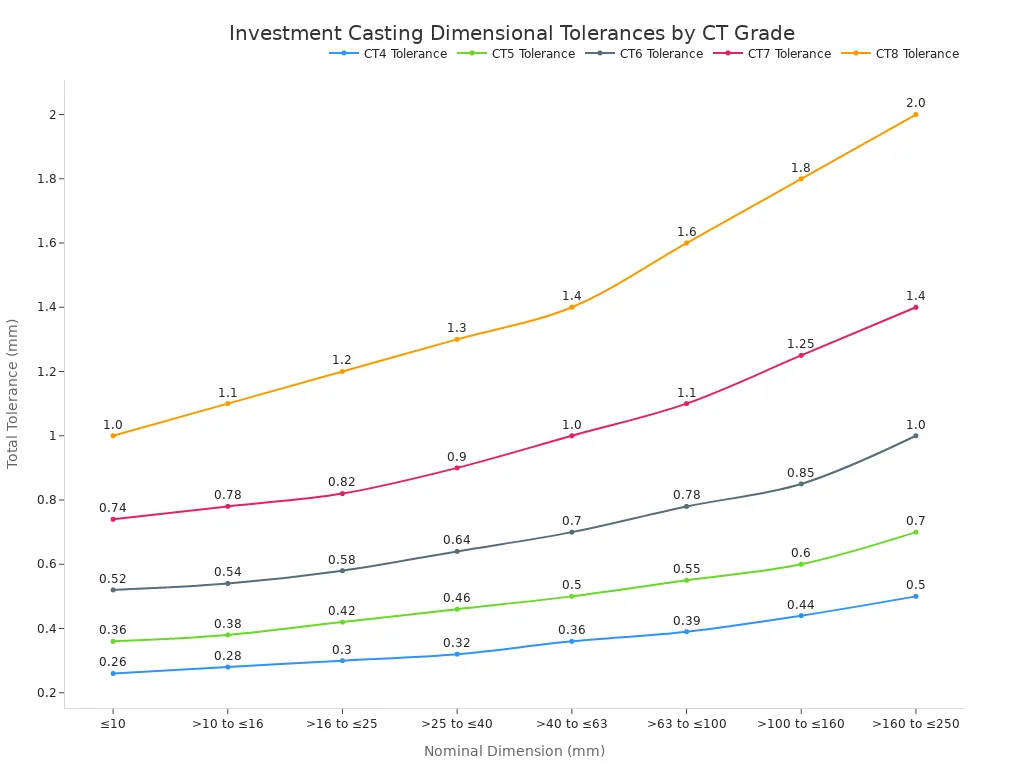

Investment casting creates parts with very exact shapes. It can make complex designs that other methods find hard to achieve. This process ensures parts fit together perfectly. For example, a part with a 50mm size can have a total tolerance of 0.70mm (±0.35mm) with a CT6 grade. This precision helps with features like flatness, straightness, and roundness. These are important for parts that need to move or connect smoothly.
Superior Surface Finish
Parts made by investment casting have a very smooth surface. This often means they do not need much extra work to look good. For many industrial uses, the surface roughness is typically Ra ≤ 1.2 µm ± 0.3 µm. Using finer coating grains can even make the surface smoother, reaching Ra 0.8–1.2 µm.
| Alloy Type | As-Cast Ra (µm) |
|---|---|
| A356 Aluminum | 0.8–1.0 |
| 7075 Aluminum | 1.0–1.2 |
| 316L Stainless | 1.2–1.4 |
| 17-4 PH Stainless | 1.0–1.3 |
| Inconel 718 | 1.6–2.0 |
| CoCrMo (Medical) | 1.5–1.8 |
| C954 Bronze | 0.8–1.2 |
| A2 Tool Steel | 1.2–1.5 |
Wide Material Versatility
Investment casting works with many different metals. This includes:
- Stainless Steel
- Low Alloy Steel
- Aluminum Alloy
- Copper Alloy (like Bronze, Brass, Beryllium-copper)
- Cast Iron (including Gray Iron, Ductile Iron)
- Nickel alloys
This wide choice lets engineers pick the best material for their specific needs.
Reduced Machining Needs
Because investment casting creates parts so close to their final shape, they need less machining. This saves time and money. It also reduces waste material.
Cost-Effectiveness for Complex Parts
Investment casting can be very cost-effective, especially for complex parts. It shines when parts have intricate features or use hard-to-machine metals. For medium to high production volumes, the cost per part becomes very low.
| Production Volume | Most Cost-Effective Method | Key Cost Factors |
|---|---|---|
| 1 to 50 units | CNC Machining | No tooling investment |
| 50 to 500 units | Generally CNC Machining | Depends on part’s complexity |
| 500 to 1000 units | Crossover Point | Evaluate case-by-case |
| 1000+ units | Usually Casting | Tooling cost amortization |
| 10,000+ units | Casting | Significant per-unit savings |
It also helps when one cast part can replace several smaller parts. This saves on assembly work and inventory.
Aerospace Investment Casting Applications
The aerospace industry relies heavily on investment casting. This process creates critical parts for aircraft and spacecraft. These parts must be very strong, light, and precise.
Engine Components
Aerospace engines use investment casting for many parts. This includes a wide array of engine and fuel system components. For example, manufacturers use this method for compressor rear frames, diffusers, fan frames, and intermediate cases. They also cast low-pressure turbine shrouds, outlet guide valves, and sump housings. Other examples include PTO housings, swirlers, swozzles, and turbine exhaust cases. Burner domes and both high-pressure and low-pressure turbine airfoils also come from investment casting. These parts need extreme precision to work correctly and safely.
Structural Parts
Structural parts in aerospace must meet very high standards. They need superior internal soundness. Manufacturers check this with tests like X-ray, magnetic particle, and liquid penetrant inspection. These parts also require premium mechanical properties. This includes tensile strength, yield strength, elongation, and reduction in area. Engineers choose materials carefully for strength, hardness, and resistance to fatigue and corrosion. They also consider operating temperature and exposure to harsh elements during design.
Hydraulic System Components
The aerospace industry also needs precision Investment Castings for hydraulic fluid systems. These systems control many aircraft functions. Investment casting produces various hydraulic system parts. The precision of investment casting applications ensures these components fit perfectly and perform reliably under extreme conditions.
Medical and Dental Investment Casting Applications
The medical and dental fields greatly benefit from investment casting. This process creates precise, high-quality components essential for patient care.
Surgical Instruments
Investment casting produces many vital medical tools. These include surgical instruments, medical devices, and various surgical tools. Manufacturers use this method for items like knee, joint, and hip implants. They also Cast Parts for wheelchairs, stretchers, and operating tables. Even components for X-Ray, MRI, and ultrasound machines come from investment casting. Ancillary support items, such as pump housings, shields, and connectors, also use this process. Investment casting creates strong, anti-corrosive parts with smooth surfaces. These features are crucial for medical implants. They prevent human safety risks. Castings can also receive titanium coatings. This reduces the chance of implant rejection. Companies like Barron Industries work with over 200 ferrous and non-ferrous alloys. These include nickel alloys, cobalt, stainless steel, and aluminum for medical investment castings.
Implants and Prosthetics
Investment casting is ideal for medical implants and prosthetics. These parts require exceptional strength and biocompatibility. The process ensures precise shapes and smooth finishes. This helps the body accept the implant.
| Material Type | Common Medical Uses |
|---|---|
| Alloy Steels | Medical Implants |
| Precipitation Hardening Stainless Steels | Medical Devices |
| Titanium Alloys | Medical Devices |
| Cobalt Alloys | Orthopaedic Implants, Prosthetics |
These materials offer the durability and safety needed for long-term use inside the human body.
Dental Devices
Dental professionals also rely on investment casting applications for intricate devices. This includes fixed prosthodontics like single crowns, multi-unit bridges, and custom abutments. It also covers implant components. For removable prosthodontics, the process makes partial denture frameworks, precision attachments, and implant bars. Orthodontic needs include custom appliance components and expansion devices. Investment casting also produces dental lab tools and fixtures. The precision of this method ensures these dental devices fit perfectly and function effectively.
Automotive Investment Casting Applications
The automotive industry uses investment casting for many important parts. This process helps make vehicles safer and more efficient. It creates strong, precise components for various systems.
Turbocharger Components
Turbochargers boost engine power. They need parts that can handle very high heat and stress. Investment casting makes these tough components possible. For example, manufacturers use Rene alloys for different turbocharger parts.

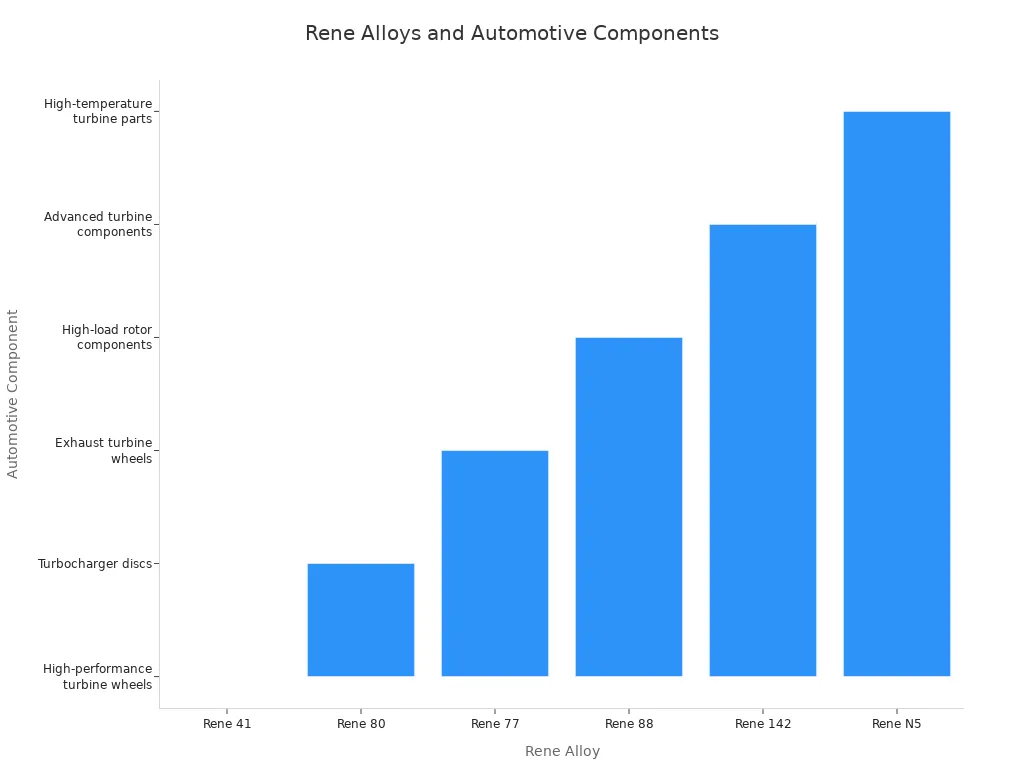

| Rene Alloy | Automotive Application |
|---|---|
| Rene 41 | High-performance turbine wheels |
| Rene 80 | Turbocharger discs |
| Rene 77 | Exhaust turbine wheels |
| Rene 88 | High-load rotor components |
| Rene 142 | Advanced turbine components |
| Rene N5 | High-temperature turbine parts |
Neway AeroTech, for instance, made Rene 80 turbocharger discs for a major car maker. They used advanced vacuum investment casting. This process, along with special heat treatment and balancing, ensured high precision and performance for these critical parts.
Fuel System Parts
Fuel systems need very accurate parts to work well. Investment casting helps create these precise components. It makes sure fuel delivery is efficient and reliable.
- Fuel injection systems
- Air and fuel system parts
- Fuel system parts
These parts help control how fuel mixes with air. This makes engines run smoothly and use less gas.
Transmission Components
Car transmissions have many complex parts. They help change gears and send power to the wheels. Investment casting is great for making these intricate components.
- Transmission parts
- Levers (for shifting gears)
- Carriers (supporting rotating elements in transmissions and drivetrains)
- Shafts (transmitting rotational motion in drivetrains and transmissions)
- Shifter Forks
The automotive industry uses investment casting to manufacture parts like these transmission components. This method ensures these parts are strong and fit together perfectly. This leads to durable and efficient transmissions. These investment casting applications are vital for modern vehicles.
Energy Sector Investment Casting Applications
The energy sector demands durable and reliable components. Investment casting provides the precision and strength needed for critical equipment. These investment casting applications help power our world.
Oil and Gas Equipment
The oil and gas industry uses investment casting for many tough parts. This includes drill tiles, feed fingers, and ramps. Manufacturers also cast wear inserts, burner management components, and control bodies. You will find valve bodies, field machinery components, and process control instruments made this way. Pump impellers, downhole drilling components, and filter screens also benefit from this process. For example, downhole and drilling tools like tool joints and stabilizers are investment cast. Latches, levers, drilling bits, nozzles, and wear pads are also common. Bushings, grates, and burner nozzles ensure precise flow control. Check valves, braking systems, and flow meters are also made with investment casting.
Power Generation Components
Power generation relies on investment casting for high-performance parts. Turbine blades are a prime example. These critical components are found in jet engines, gas turbines for electricity, and industrial steam turbines. Large, land-based gas turbines use big, investment cast blades. Smaller gas and steam turbines also use investment cast blades for powering compressors and pumps. Other components include shafts, bearing supports, fuel system parts, and exhaust diffusers. Stationary inlet guides and turbine housings also come from this process.
Renewable Energy Parts
Investment casting also plays a role in renewable energy. It is a key process within the wind turbine casting market. This method offers higher precision and an improved surface finish for wind turbine components. It also helps reduce lead times. These advantages make investment casting a growing choice for parts in the renewable energy sector.
Firearms and Defense Investment Casting Applications
The firearms and defense industries rely on investment casting for many critical components. This process creates parts that meet strict performance and safety standards. Manufacturers use it for items that need high strength, precision, and durability.
Weapon System Components
Investment casting produces a wide range of weapon system parts. For example, it makes missile fins and airfoil sections. It also creates servo and actuator housings, along with bearing housings and frame components. Manufacturers cast launcher azimuth alignment and articulation parts. They also produce satellite housings and structural elements. For firearms themselves, the process makes gun triggers, hammers, and sights. It also creates bolts, handles, and stops. Safeties, hinges, and locks are common. Other parts include mounts, triggers, trigger guards, pistol grips, and magazine releases. Gas cylinders, operating rods, slides, and disassembly levers also come from investment casting.
Optical Mounts
Precision is key for optical equipment in defense. Investment casting creates housings and mounts for various optical devices. This includes housings and mounts for scopes. It also produces parts for night vision equipment. Furthermore, manufacturers cast housings and mounts for laser systems. These components ensure optical devices stay secure and aligned, even in harsh conditions.
Specialized Hardware
The defense sector uses investment casting for much specialized hardware. This includes electronic housing units for LiDAR and radar technologies. It also makes parts for UAV systems and track and drive systems. Mounted sensing systems and navigation systems benefit from this process. Artillery components and communication devices also use investment cast parts. Projectile launchers, valve bodies, and elbows are common. Manufacturers also cast ball valve arms, bearing housings, and blackout visors. Bonnets, plungers, stem brackets, and horizontal mount necks are other examples.
Industrial and Commercial Investment Casting Applications
Many industrial and commercial sectors use investment casting for critical components. This process delivers the precision and durability these industries demand.
Valve and Pump Components
Industrial and commercial operations rely heavily on investment casting for many valve and pump parts. This process creates components with high precision and intricate designs. For valves, manufacturers cast bodies, discs, seats, stems, and bonnets. They also produce flapper and butterfly valve discs, burst valve components, and ball valves. For pumps, investment casting creates complex impellers, casings, diffusers, and volutes. Other pump parts include wear rings, guide vanes, mechanical seals, and shaft sleeves. This method ensures these components work reliably in demanding environments.
Robotics Parts
Robotics also benefits from investment casting. Robots need many precise and strong parts to function correctly. Investment casting helps create complex gears, linkages, and housings for robotic systems. It allows for intricate designs that improve robot movement and function. This process ensures robots can perform tasks accurately and efficiently, making them more reliable in various industrial settings.
Food Processing Equipment
The food processing industry uses investment casting for hygienic and durable equipment. This process makes parts that meet strict cleanliness standards. It produces pump components like impellers and casings. It also creates valve parts, mixing blades, and food processing blades. Other items include flow control components, fittings, and connectors. Investment casting also makes turbines, propellers, and impellers for mixing and aerating food materials. These parts often have smooth surfaces to prevent contamination and make cleaning easy.
Common Materials for Investment Casting Applications
Investment casting uses many different materials. Each material offers unique properties for specific applications. Choosing the right material ensures the final product performs well.
Stainless Steels
Stainless steels are very popular in investment casting. Grade 304 (CF-8) is the most common. This low-carbon alloy resists scaling and corrosion at high temperatures. Its low carbon content helps with welding in corrosive environments. All 300-series stainless steels contain nickel, which makes them ductile and weldable. You often find 304 in high-strength parts for safety-critical industries. Other widely used grades include 316, 304L/316L, 410, 416, and 17-4.
| Grades | Features | Applications |
|---|---|---|
| 304 | Austenitic, >8% Ni, food grade, most widely used, suitable for less corrosive air environments. | Medical, food industry, chemical industry, mechanical equipment, pipe industry, automotive industry. |
| 316 | Austenitic, >10% Ni, better corrosion resistance than 304, suitable for marine or harsh chemical environments. | Fire fighting, auto parts, marine hardware, chemical, pipeline, construction, decoration, food industry. |
| 304L / 316L | Similar to 304/316 but with lower carbon content, more ductile, good welding performance, reliable corrosion resistance, higher price. | Food, chemical, medical, plumbing. |
| 410 & 416 | Martensitic, high strength, good processing, high heat treatment hardness, no Ni, weak corrosion resistance. | Auto parts, tools, knives. |
| 17-4 PH | Martensitic, 3%-5% Ni, good corrosion resistance, highest strength in stainless steel, used for products not prone to deformation. | Military, medical, mechanical components, machine tools, turbine blades. |
| 2205 | Duplex, 22% Cr, 2.5% Mo, 4.5% Ni-N, high strength, good impact toughness, good overall and local stress corrosion resistance. | Sporting, pump & valve industry. |
Aluminum Alloys

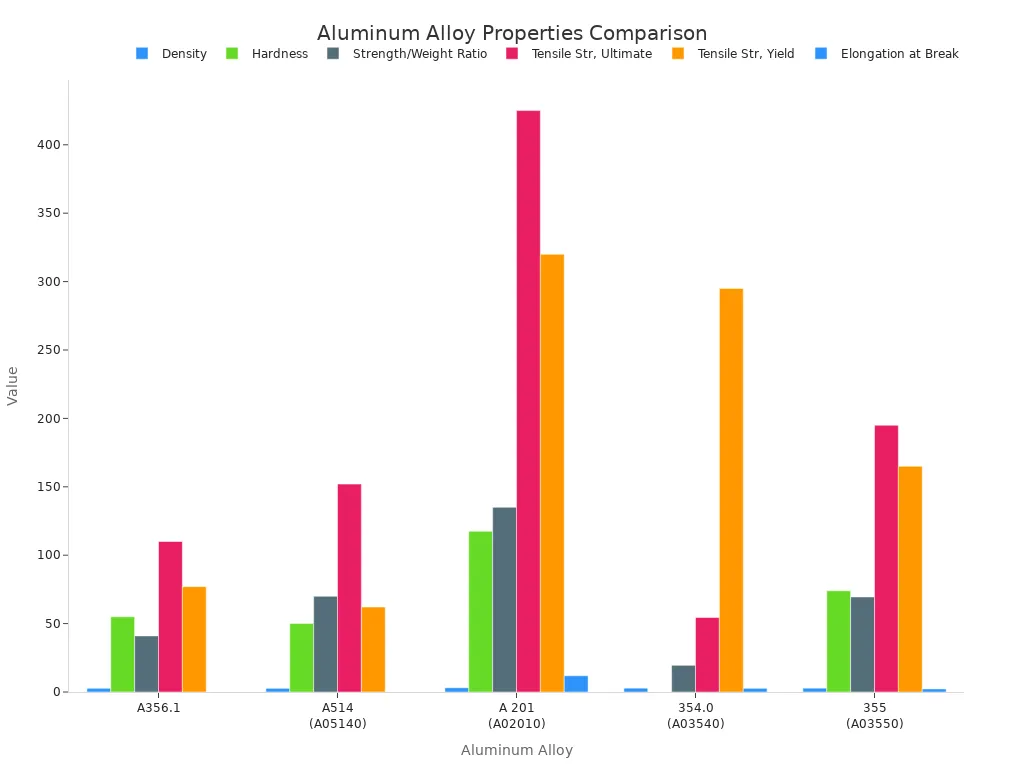

Aluminum alloys are lightweight and offer excellent corrosion resistance. Investment casting can produce intricate shapes using various aluminum alloys. These include 208.0, 355.0, 356.0, and A356. A356 aluminum is a frequently used alloy. It offers high ductility, durability, and strength. Its composition includes aluminum (92.5%), silicon (7%), and magnesium (0.35%). Heat treatments like T5 and T6 can enhance its hardness and durability.
Nickel-Based Alloys
Nickel-based alloys are excellent for high-temperature applications. They resist oxidation and corrosion. Inconel® maintains strength over a wide temperature range. This makes it attractive for jet engines and aerospace parts. Monel® offers excellent corrosion resistance and high strength, useful in oil and gas. Hastelloy® provides chemical corrosion resistance and can withstand high temperatures without losing ductility.
- Inconel®: Oxidation- and corrosion-resistant, retains strength over a wide temperature range, attractive for high-temperature applications where aluminum and steel would succumb to creep.
- Monel®: Excellent corrosion resistance, high strength, used in oil and gas industry for hydrocarbon processing equipment like pumps, valves, and fittings.
- Hastelloy®: Excellent weldability, chemical corrosion resistance, and stress corrosion resistance. Capable of withstanding high temperatures without losing ductility.
Cobalt-Based Alloys
Cobalt alloys are known for their exceptional wear and corrosion resistance. Their chromium content forms a protective oxide layer. This helps them withstand constant friction and corrosive elements. These alloys also possess significant strength and hardness. This makes them suitable for heavy-duty industrial components. Cobalt Alloy 6, for example, performs well in general wear situations and maintains hardness up to 900°F. Cobalt Alloy 3 has high carbon content, resisting abrasion and erosion.
- Cobalt Alloy 6 – AMS 5387: Performs well in general wear situations. High resistance to chemical deprivation across various temperature ranges. Maintains hardness up to 900°F.
- Cobalt Alloy 3: High carbon content provides resistance to abrasion and erosion.
- Cobalt Alloy 21 – AMS 5385: Excellent resistance to thermal and mechanical shock.
Carbon and Low Alloy Steels

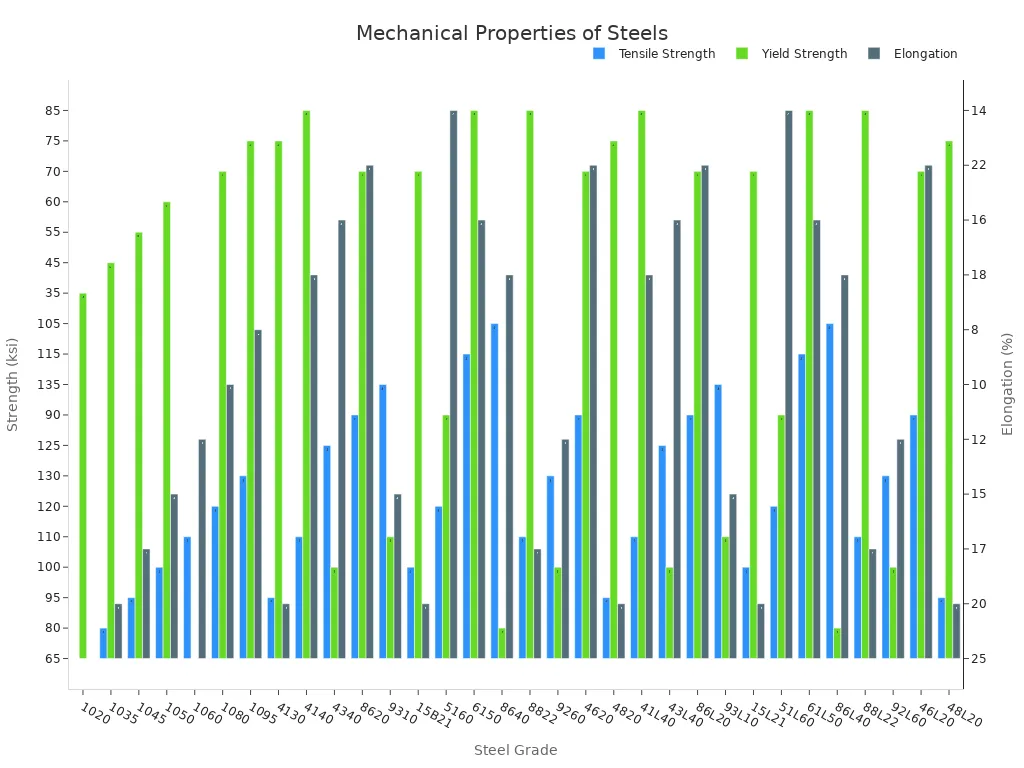

Carbon and low alloy steels are versatile choices for investment casting. They offer a range of mechanical properties. These properties include tensile strength, yield strength, and elongation. Engineers select specific grades based on the required strength and toughness for the application. For example, 1020 carbon steel has a tensile strength of 65 ksi, while 4340 low alloy steel reaches 125 ksi.
Investment casting proves indispensable for modern manufacturing. It serves diverse industries, from aerospace to medical. This process consistently produces complex, high-precision parts. Its unique capabilities ensure continued relevance and drive innovation across various sectors, making it a cornerstone of advanced production.
FAQ
What is investment casting?
Investment casting is a precision manufacturing process. It creates complex metal components. This method uses a wax pattern to form a ceramic mold.
Which industries benefit most from investment casting?
Aerospace, medical, automotive, and energy sectors use investment casting widely. It also serves firearms, industrial, and commercial applications.
What makes investment casting a good choice for complex parts?
It offers high precision and intricate geometries. The process also provides superior surface finish and works with many materials.
