Precision Casting vs Sand Casting vs Die Casting Explained

Choosing the right casting method can feel overwhelming. What's precision casting? How does it differ from sand or die casting? Each method offers unique advantages. Understanding these differences is crucial for businesses to make informed decisions. For instance, an investment casting plant typically utilizes precision casting processes to manufacture high precision parts for industries such as automotive and power generation.

Key Takeaways

• Precision casting is very accurate and has smooth surfaces. It works well for detailed designs in aerospace and medical fields.
• Sand casting is cheaper for small batches and works with many materials. However, it can leave rough surfaces.
• Die casting is great for making many parts with non-ferrous metals. It gives smooth surfaces and exact sizes but costs a lot to start.

What's Precision Casting?

Precision casting, also known as investment casting, is a manufacturing process that creates highly detailed and accurate metal parts. It’s a go-to method for industries requiring intricate designs and tight tolerances. But what's precision casting? Let’s break it down.

Precision Casting Process

The process begins with creating a wax model of the desired part. This model is coated with ceramic material to form a mold. Once the ceramic hardens, the wax is melted away, leaving a cavity in the shape of the part. Molten metal is then poured into this mold. After cooling, the ceramic shell is broken off, revealing the final product.

Benefits of Precision Casting

Precision casting offers several advantages:

• Dimensional Accuracy: It achieves tolerances as fine as ±0.1mm, reducing the need for additional machining.
• Surface Finish: Parts have smooth finishes, ranging from 60 to 200 RMS, making them suitable for aesthetic and functional purposes.
• Material Versatility: It works with materials like stainless steel, carbon steel, and aluminum.
• Design Flexibility: Complex shapes and sizes can be cast with ease.
• Efficiency: The process minimizes waste, making it ideal for mass production.

Limitations of Precision Casting

While precision casting excels in many areas, it may not be the best choice for every application. It’s typically more expensive than other methods, and the process can take longer due to the detailed steps involved.

Applications of Precision Casting in Industries

Precision casting is widely used across industries:

• Aerospace: Produces lightweight, high-strength components.
• Automotive: Creates intricate parts like engine components.
• Medical Devices: Manufactures surgical tools and implants.
• Industrial Machinery: Supplies durable parts for heavy equipment.

Ningbo Pingheng Machinery Co., Ltd. specializes in precision casting, offering high-quality solutions for industries like automotive, power, and engineering machinery. Their expertise ensures reliable and efficient results tailored to specific needs.

What is Sand Casting?

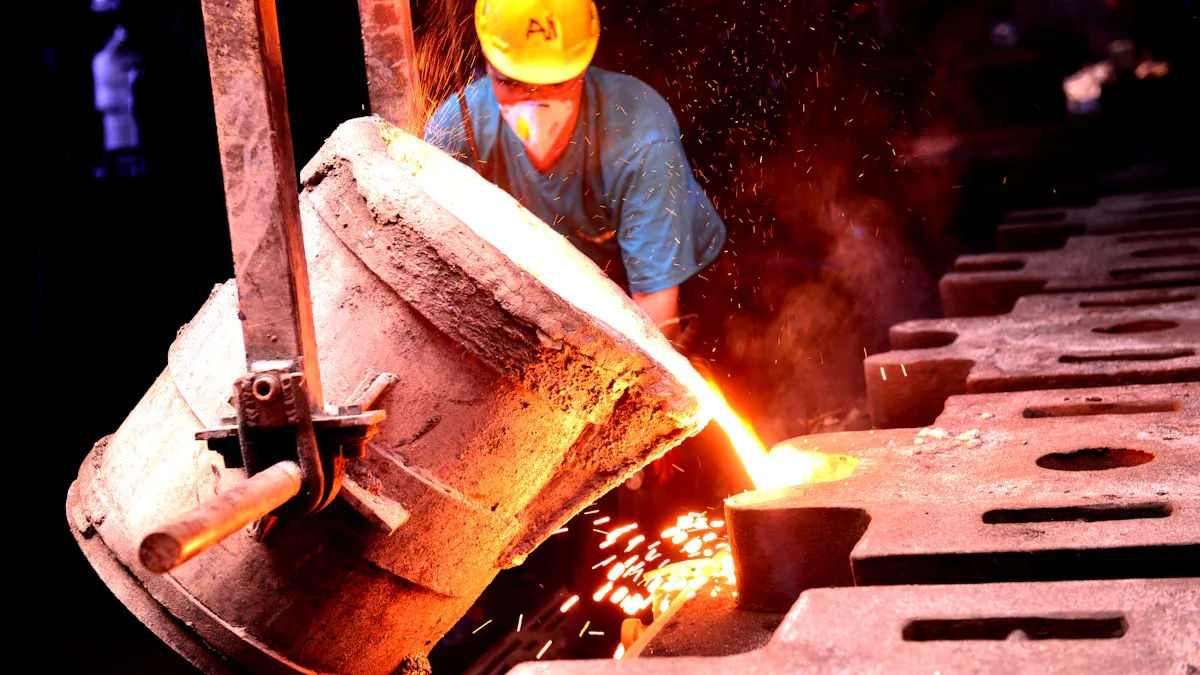

Sand casting is one of the oldest and most versatile manufacturing methods. It involves creating metal parts by pouring molten metal into a sand mold. This process is widely used due to its simplicity and ability to produce large, complex components.

Sand Casting Process

The sand casting process begins with preparing a mold. Foundries use silica sand mixed with a binder to create a strong and permeable mold. The mold is shaped to match the desired part, and molten metal is poured into it. Once the metal cools and solidifies, the mold is broken to reveal the final product. Post-casting processes like cleaning and finishing ensure the part meets quality standards.

Benefits of Sand Casting

Sand casting offers several advantages:

• It’s cost-effective, especially for low-volume production.
• The process accommodates a wide range of materials, including aluminum, iron, and steel.
• It can produce complex geometries with ease.
• Enhanced sand properties improve component quality and reduce waste, promoting sustainability.

Limitations of Sand Casting

Despite its benefits, sand casting has some drawbacks. Parts may have lower material strength due to porosity. The surface finish is often rough, and dimensional accuracy is less precise compared to other methods. Additionally, the process can be labor-intensive.

Applications of Sand Casting in Industries

Sand casting is prevalent in industries like automotive and aerospace. For example, it holds a 28.4% market share in the automotive sector, with a growth rate of 5.4% annually. Its flexibility makes it ideal for producing engine blocks, industrial machinery parts, and more.

What is Die Casting?

Die casting is a manufacturing process that produces metal parts by forcing molten metal into a mold cavity under high pressure. It’s a popular choice for industries requiring high-volume production of precise and durable components.

Die Casting Process

The die casting process involves four main steps: preparing the mold, injecting molten metal, cooling the part, and ejecting the finished product. Manufacturers use either hot-chamber or cold-chamber machines, depending on the type of metal being cast. Hot-chamber machines work well with metals like zinc and magnesium, while cold-chamber machines handle aluminum and copper alloys. To ensure easy ejection and high-quality surfaces, molds are designed with a draft angle.

Aspect	Description
Capital Costs	High initial investment in equipment and dies limits die casting to high-volume production.
Production Steps	Involves four main steps, simplifying the manufacturing process and reducing incremental costs.
Suitability	Ideal for large quantities of small- to medium-sized castings, leading to high production rates.
Surface Finish	Die castings have a good surface finish and dimensional consistency, enhancing product quality.
Types of Machines	Two types: hot-chamber and cold-chamber machines, rated by clamping force (400 to 4,000 st).
Draft Requirement	Draft is necessary for easy ejection of castings, ensuring high-quality surfaces and precision.

Benefits of Die Casting

Die casting offers several advantages:

• High Production Efficiency: Simulation software helps identify defects before production, reducing waste and rework. This boosts production rates and lowers costs.
• Dimensional Accuracy: Parts have consistent dimensions, making them suitable for applications requiring precision.
• Smooth Surface Finish: The process delivers parts with excellent surface quality, minimizing post-processing needs.
• Complex Designs: Manufacturers can create intricate shapes with thin walls and tight tolerances.
• Cost-Effectiveness: Fast cycle times and repeatable results make die casting ideal for large production runs.

Limitations of Die Casting

Die casting has some limitations. The high initial cost of equipment and molds makes it less suitable for low-volume production. Additionally, the process is limited to metals with low melting points, such as aluminum, zinc, and magnesium. While the surface finish is smooth, porosity can sometimes affect the strength of the final product.

Applications of Die Casting in Industries

Die casting is widely used across various industries:

• Automotive: Produces parts like engine blocks, gears, and housings.
• Aerospace: Lightweight aluminum components improve fuel efficiency.
• Electronics: Metal housings shield devices from electromagnetic interference.
• Construction: Aluminum window frames and structural components enhance durability.

Manufacturers rely on die casting for its ability to produce high-quality parts quickly and efficiently. Its versatility and precision make it a cornerstone of modern manufacturing.

Comparative Analysis of Casting Methods

Accuracy and Surface Finish

When it comes to accuracy and surface finish, each casting method performs differently. Die casting stands out for its smooth surface and high dimensional accuracy. It often eliminates the need for additional finishing. On the other hand, sand casting produces parts with a rough, coarse finish that usually requires post-treatment. Precision casting offers a balance, delivering excellent accuracy and a smooth surface, though not as refined as die casting.

• Die casting provides a polished finish, ideal for applications where appearance matters.
• Sand casting results in a rougher surface, making it better suited for parts where aesthetics are less critical.
• Precision casting achieves tight tolerances and smooth finishes, perfect for intricate designs.

Cost and Production Volume

The cost-effectiveness of each method depends on production volume. For low-volume runs, sand casting is the most economical due to its low tooling costs. Precision casting, while more labor-intensive, offers moderate costs for mid-volume production. Die casting, with its high initial tooling costs, becomes cost-effective only for large-scale production.

Production Volume	Tooling Costs	Labor Costs	Part Costs
Low volume (1-10,000)	Low	Low	Moderate
Mid volume (<10k <50k)	Moderate	Moderate	Moderate
High volume (>50k)	High	Moderate to High	Low

Material Compatibility

Each casting method supports different materials. Sand casting works well with a wide range of metals, including aluminum and iron. Die casting is limited to metals with low melting points, like zinc and magnesium. Precision casting excels with materials like stainless steel, carbon steel, and copper alloys, making it versatile for various industries.

Study/Project	Description
AFS Casting Standards and Specifications	Offers detailed information on casting materials and standards.
USAMP Light Metals Materials Database	Provides data on aluminum and cast iron properties for material selection.

Suitability for Different Applications

The choice of casting method depends on the application. Sand casting is ideal for large, simple parts like engine blocks. Die casting suits high-volume production of small, precise components, such as electronic housings. Precision casting is perfect for intricate designs in industries like aerospace and medical devices.

Tip: Consider factors like production volume, material properties, and required precision when selecting a casting method.

---

Choosing the right casting method depends on your needs. Sand casting works best for low-volume production and prototyping. Die casting excels in high-volume runs with non-ferrous metals. Precision casting offers unmatched detail for intricate designs.

Casting Process	Material Suitability	Production Volume	Cost Efficiency
Sand Casting	Most ferrous and non-ferrous metals	Low to Medium	High
Die Casting	Non-ferrous metals (e.g., aluminum)	High	Moderate
Investment Casting	Ferrous and non-ferrous metals	Low to Medium	Low

Tip: Consult experts to match your budget, production volume, and quality needs with the ideal casting method.

FAQ

1. How do I choose the best casting method for my project?

Tip: Consider your project's needs. Precision casting suits intricate designs, sand casting works for large parts, and die casting excels in high-volume production.

2. Can I use multiple casting methods for one product?

Yes, combining methods is possible. For example, sand casting can create larger parts, while precision casting handles smaller, detailed components.

3. Which casting method is the most cost-effective?

• Sand Casting: Best for low-volume production.
• Die Casting: Ideal for high-volume runs.
• Precision Casting: Cost-effective for mid-volume, intricate designs.

Note: Consult experts to match your budget and production goals with the right method.
