What You Need to Know About Stainless Steel Silica Sol Casting
Customized stainless steel silica sol precision castingis a cutting-edge Investment Casting method known for its precision and versatility. Using silica sol as a binder,customized stainless steel silica sol casting delivers exceptional results in crafting complex stainless steel components. For instance, this process achieves dimensional accuracy of CT4-6 and a surface finish as smooth as Ra.1.6 to 3.2μm. These qualities make it ideal for industries needing customized silica sol precision castings. By reducing machining work, stainless steel silica sol Precision Casting saves time and resources while ensuring unparalleled precision.
Key Takeaways
- Stainless steel Silica Sol Casting gives precise shapes and smooth surfaces. It is great for industries needing detailed parts.
- This method uses less material and needs less machining. This saves money and helps the environment.
- Skilled foundries create custom parts to match exact designs. This improves how well parts work in important uses.
What Is Stainless Steel Silica Sol Casting?
Definition and Key Features
Stainless steel silica sol casting is a specialized investment casting method that uses silica sol as a binder to create high-precision components. This process is known for its ability to produce parts with intricate designs and exceptional dimensional accuracy. Manufacturers rely on this method to achieve smooth surface finishes, reducing the need for extensive post-processing.
Key features of this casting method include:
- Dimensional Accuracy: Achieves tolerances as precise as CT4-6.
- Surface Finish: Produces surfaces with roughness values as low as Ra.1.6 to 3.2μm.
- Versatility: Suitable for complex geometries and thin-walled designs.
- Efficiency: Minimizes material waste and machining requirements.
This combination of precision and efficiency makes stainless steel silica sol casting a preferred choice for industries requiring high-quality components.
Why Stainless Steel Is Ideal for Silica Sol Casting
Stainless steel is the material of choice for silica sol casting due to its unique properties. It offers excellent strength, durability, and resistance to corrosion, making it suitable for demanding applications. Additionally, stainless steel's ability to withstand high temperatures ensures compatibility with the molten metal pouring stage of the casting process.
Industries like aerospace, automotive, and medical equipment benefit from stainless steel's reliability. Its adaptability allows manufacturers to create parts that meet strict performance standards. Whether it's a turbine blade or a surgical instrument, stainless steel delivers the durability and precision required for critical applications.
Importance of Precision in Modern Manufacturing
Precision is the cornerstone of modern manufacturing, and stainless steel silica sol casting plays a vital role in achieving it. This method ensures components are produced with near-net shapes, reducing the need for extensive machining and lowering production costs.
Precision casting isn't just about accuracy; it's about efficiency and sustainability. By minimizing waste and optimizing material usage, manufacturers can meet the growing demand for eco-friendly production methods.
To illustrate the importance of precision, consider the following statistics:
| Statistic | Description |
|---|---|
| 15% to 20% | Percentage of vehicle parts that are castings, highlighting the significance of casting in automotive manufacturing. |
| High quality and excellent performance | Requirements for casting production to meet modern automotive demands. |
| Near net shape and low cost | Goals of precision casting to enhance efficiency and reduce waste in manufacturing. |
These figures demonstrate how precision casting methods like stainless steel silica sol casting contribute to the success of industries that rely on high-performance components. Customized stainless steel silica sol precision casting, in particular, stands out for its ability to deliver tailored solutions that meet specific design and performance requirements.
How Does the Stainless Steel Silica Sol Casting Process Work?
Step 1: Wax Pattern Creation
The process begins with creating a wax pattern, which serves as a replica of the final component. This step is crucial because the wax pattern determines the shape and dimensions of the finished product. Manufacturers often use metal dies and CAD models to ensure precision. Wax is injected into these dies to form patterns that are then assembled into a tree-like structure for batch processing.
The quality of the wax pattern directly impacts the final casting. For example:
- High-quality dies result in smoother surfaces and better detailing.
- Advanced techniques like 3D printing allow for intricate designs.
This step sets the foundation for the entire process, ensuring the final product meets exact specifications.
Step 2: Silica Sol Coating Application
Once the wax pattern is ready, it undergoes a silica sol coating process. Silica sol, a liquid binder, is applied to the wax pattern to create a smooth and stable surface. This coating enhances the mold's durability and ensures a high-quality finish for the casting.
Key quality control metrics during this step include:
| Quality Control Metric | Description |
|---|---|
| Optimal Particle Size | Ensures proper binding and stability of molds, affecting the overall quality of castings. |
| Stability and Durability | Maintains mold dimensions during drying and firing, crucial for accurate final castings. |
| Surface Finish Improvement | Provides a smooth mold surface, reducing imperfections and the need for additional finishing processes. |
| Eco-Friendly Nature | Non-toxic and safe for the environment, aligning with modern industry standards for sustainability. |
This step ensures the mold can withstand the subsequent stages without compromising the final product's quality.
Step 3: Ceramic Shell Formation
After the silica sol coating, the wax pattern is dipped into a ceramic slurry and coated with fine sand. This process is repeated multiple times to build a robust ceramic shell around the wax pattern. Each layer is dried before the next is applied, ensuring the shell's strength and stability.
The ceramic shell must be thick enough to handle the molten stainless steel but porous enough to allow gases to escape during casting. This balance is achieved through careful control of the slurry's composition and drying conditions. The result is a durable mold ready for the next stage.
Step 4: Wax Removal and Shell Firing
In this step, the wax inside the ceramic shell is removed through a process called dewaxing. The shell is heated, causing the wax to melt and drain away, leaving a hollow mold. This step is critical for achieving a high-quality shell.
Adding materials like sawdust to the ceramic slurry can improve the shell's properties, such as porosity and permeability. These enhancements ensure the shell can withstand the high temperatures of molten metal without cracking. After dewaxing, the shell is fired at high temperatures to harden it further, making it ready for casting.

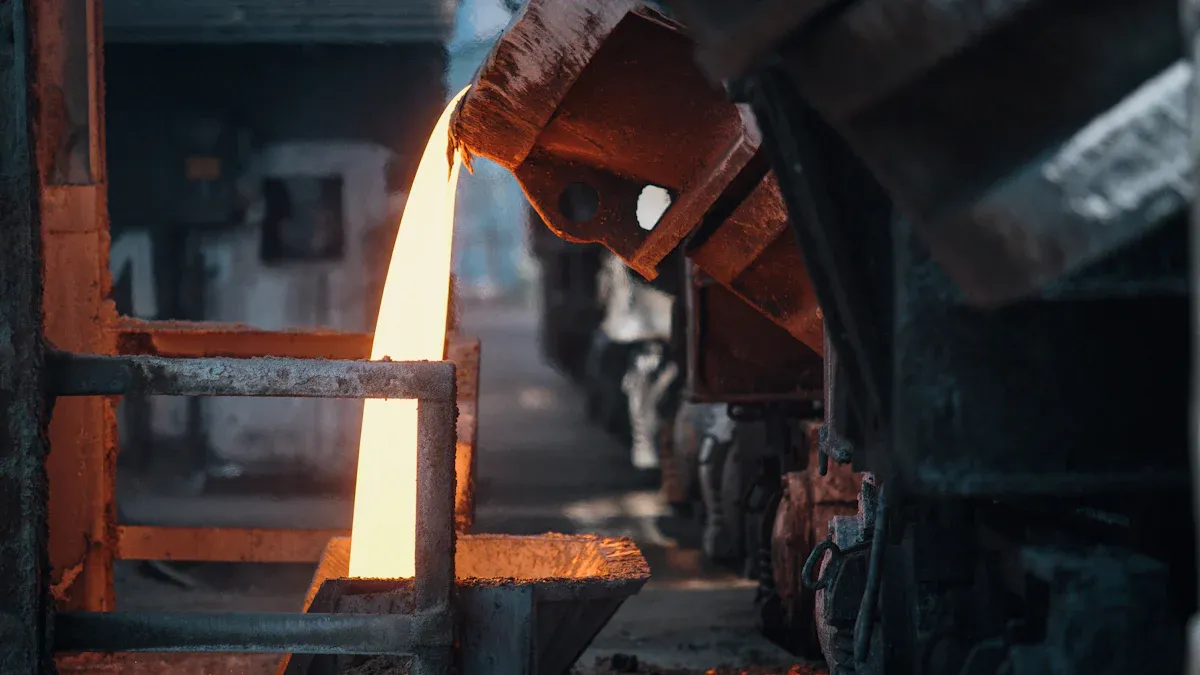

Step 5: Molten Stainless Steel Pouring
With the ceramic shell prepared, molten stainless steel is poured into the mold. Stainless steel's high melting point and excellent flow characteristics make it ideal for this process. The molten metal fills every cavity of the mold, capturing even the finest details of the original wax pattern.
This step requires precise temperature control to ensure the metal flows smoothly and solidifies evenly. Any deviation can lead to defects, so manufacturers rely on advanced monitoring systems to maintain consistency.
Step 6: Cooling, Shell Removal, and Finishing
Once the molten metal solidifies, the ceramic shell is broken away to reveal the rough casting. The casting is then cleaned, and any excess material is removed through grinding or cutting.
Post-treatment processes like heat treatment or machining may be applied to enhance the casting's properties. For example, heat treatment can improve the material's strength and durability, while machining ensures the final product meets exact specifications.
The result is a high-quality stainless steel component, ready for use in industries like aerospace, automotive, or medical equipment. This entire process highlights the precision and efficiency of customized stainless steel silica sol precision casting.
Advantages of Stainless Steel Silica Sol Casting
High Dimensional Accuracy and Surface Finish
Stainless steel silica sol casting stands out for its exceptional precision. This method achieves dimensional tolerances as tight as CT4-6, far surpassing traditional methods like sand casting (CT10-13) or die casting (CT5-7). The surface finish is equally impressive, with roughness values ranging from Ra 1.6 to 3.2μm. These qualities reduce the need for additional machining, saving time and resources.
| Measurement Aspect | Value |
|---|---|
| Dimensional Tolerance Grade | CT 5-7 (ISO 8062) |
| Precision Tolerance | ±0.1 mm |
This level of accuracy ensures components meet strict industry standards, making it ideal for applications requiring flawless finishes and precise dimensions.
Ability to Cast Complex and Thin-Walled Shapes
One of the most remarkable features of this casting method is its ability to produce intricate designs and thin-walled components. The process can reliably create sections as narrow as 0.15 inches while maintaining structural integrity. This capability is invaluable for industries like aerospace and medical equipment, where lightweight yet durable parts are essential.
- Produces thin sections down to 0.15 inches.
- Captures intricate details with minimal post-processing.
- Reduces material waste by achieving near-net shapes.
This flexibility allows manufacturers to meet unique design requirements without compromising quality.
Cost Efficiency and Reduced Material Waste
Stainless steel silica sol casting is not only precise but also cost-effective. By minimizing machining allowances and optimizing material usage, this method significantly reduces waste. Foundries benefit from recycling scrap metals and implementing precise material control technologies. These practices lower raw material costs and improve environmental sustainability.
- Reduces overuse of materials through precise measurements.
- Recycles scrap metals to save on raw material expenses.
- Minimizes disposal costs and regulatory fines with effective waste management.
This efficiency makes customized stainless steel silica sol precision casting an eco-friendly and economical choice for modern manufacturing.
Corrosion Resistance and Durability
Stainless steel's natural resistance to corrosion and extreme conditions makes it a durable choice for casting. Studies show its long-term performance remains reliable even in challenging environments, such as chloride-contaminated areas. This durability ensures components withstand high stress, temperatures, and corrosive elements.
- Request detailed alloy composition data to match operational needs.
- Review testing results, such as tensile strength and corrosion resistance.
- Confirm compliance with ASTM standards for consistent quality.
By collaborating with experienced foundries, manufacturers can ensure their castings meet the highest durability standards.
Applications of Customized Stainless Steel Silica Sol Precision Casting
Aerospace and Automotive Components
The aerospace and automotive industries demand components that are lightweight, strong, and precise. Customized stainless steel silica sol precision casting meets these requirements by producing intricate parts with exceptional accuracy. For instance, this method is used to create turbine blades, engine components, and structural parts that must endure high stress and extreme temperatures.
Reports show that advancements in silica sol casting have enabled the production of more complex designs, which is crucial for modern vehicles and aircraft. The process also supports the use of superalloys and aluminum, making it ideal for lightweight yet durable components. As the demand for high-performance parts grows, this casting method continues to play a pivotal role in these industries.
Medical Equipment and Tools
Precision and reliability are non-negotiable in the medical field. Stainless steel silica sol casting excels in producing surgical instruments, implants, and diagnostic equipment with flawless finishes and tight tolerances. The process ensures that every component meets stringent quality standards, which is critical for patient safety.
The investment casting market is expanding rapidly, driven by the need for high-precision medical tools. The silica sol process stands out for its ability to create intricate designs with minimal post-processing, making it a preferred choice for medical manufacturers.
Industrial Machinery and Valves
Industrial machinery and valve production benefit significantly from this casting method. It delivers components with high durability and precision, even for harsh environments like oil and gas or food processing.
| Industry | Application Examples | Benefits of Casting Method |
|---|---|---|
| Food Machinery | Valve and pump components | Produces complex shapes and high-quality finishes |
| Oil and Gas | Valves, pump components, drilling tools | High durability and precision for harsh environments |
| Automotive | Precision-engineered components | Ideal for intricate designs and reliable performance |
This versatility makes stainless steel silica sol casting a go-to solution for industrial applications.
Custom Non-Standard Parts by Ningbo Pingheng Machinery Co., Ltd
Ningbo Pingheng Machinery Co., Ltd specializes in creating custom non-standard parts using stainless steel silica sol casting. Their expertise allows them to deliver tailored solutions for unique design and performance needs. From mold development to finished products, they offer a one-stop service that ensures quality and precision.
By leveraging this advanced casting method, the company helps industries achieve their goals with components that meet exact specifications. Whether it’s a prototype or a large production run, their commitment to excellence sets them apart.
How Does Silica Sol Casting Compare to Other Methods?
Silica Sol Casting vs. Water Glass Casting
Silica sol casting and water glass casting are both investment casting methods, but they differ significantly in quality and application. Silica sol casting is known for its superior surface finish and dimensional precision, making it ideal for high-end applications. On the other hand, water glass casting is more cost-effective but sacrifices some quality.
- Silica sol casting provides a smoother surface finish, reducing the need for post-processing.
- Water glass casting uses quartz sand and dewaxes in high-temperature water, which can lead to a rougher surface.
- Surface roughness is a key differentiator, with silica sol casting offering a much finer finish.
While water glass casting works well for less demanding applications, industries requiring intricate designs and tight tolerances often choose silica sol casting despite its higher cost.
Silica Sol Casting vs. Sand Casting
Sand casting is a traditional method that remains popular for large, simple components. However, it falls short when compared to silica sol casting in terms of precision and versatility.
Silica sol casting excels in producing complex geometries and thin-walled designs. Sand casting, by contrast, struggles with intricate details and often requires more machining. Additionally, silica sol casting eliminates parting lines, enhancing the overall quality of the final product. For industries like aerospace and medical, where precision is critical, silica sol casting is the clear winner.
Why Silica Sol Casting Is Preferred for Precision Applications
Silica sol casting stands out as the go-to method for precision applications due to its unmatched accuracy and versatility. The process ensures tight tolerances, smooth finishes, and the ability to create intricate designs.
| Advantage | Description |
|---|---|
| Dimensional Accuracy | Silica sol casting ensures exceptional accuracy in the final product. |
| Surface Finish | The process provides a superior surface finish, reducing the need for additional machining. |
| Complex Geometries | It accommodates intricate designs with thin walls, making it ideal for complex components. |
| Elimination of Parting Lines | The method reduces or eliminates parting lines, enhancing the overall quality of the casting. |
| Versatility | Silica sol casting can be used with various metals, allowing for a wide range of applications. |
Industries like automotive, aerospace, and medical rely on this method for its ability to meet strict specifications. Whether it’s a lightweight turbine blade or a precise surgical instrument, silica sol casting delivers results that other methods simply can’t match.
Stainless steel silica sol casting combines precision, versatility, and efficiency, making it indispensable across industries. Its ability to produce intricate designs with exceptional surface quality and dimensional accuracy sets it apart.
| Benefit/Application | Description |
|---|---|
| Exceptional Surface Quality | Produces parts with smooth surfaces, reducing the need for post-casting finishing. |
| Dimensional Precision | Allows manufacturers to meet tight tolerances and reduce material wastage from machining. |
| Aerospace Applications | Used for components like turbine blades and flight control mechanisms. |
Ningbo Pingheng Machinery Co., Ltd excels in delivering customized solutions, ensuring every component meets exact specifications. Their one-stop service, from mold development to finished products, guarantees quality and reliability.
FAQ
What makes stainless steel silica sol casting different from other casting methods?
Stainless steel silica sol casting offers unmatched precision, smoother finishes, and the ability to create complex shapes. It’s ideal for industries needing high-quality, intricate components.
Can silica sol casting handle custom designs?
Yes! This method excels at producing custom, non-standard parts. Manufacturers can create intricate designs tailored to specific requirements with minimal post-processing.
Is stainless steel silica sol casting eco-friendly?
Absolutely! The process minimizes material waste and uses non-toxic silica sol binders. It aligns with modern sustainability standards, making it an environmentally responsible choice.
